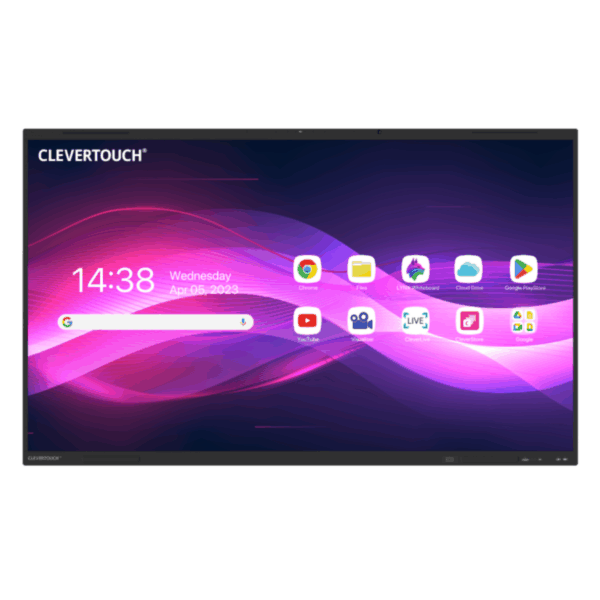

Clevertouch 75” Impact LUX V2

Clevertouch X5 65"

Clevertouch 86” Impact LUX V2

£3,284.97 £2,737.47

Luxury in every touch, power in every feature

High precision technology meets intuitive software to improve planning and delivery of engaging lessons.

The Clevertouch Impact Lux is a perfect all-around solution for the modern classroom, featuring state-of-the-art micro antibacterial glass, integrated NFC/RFID technology & ultra-responsive HPIR touch frame with palm rejection.

BOOK A DEMO >

IN STOCK

SKU

15486IMPACTLUX2

4K UHD (3840 x 2160), Android 15, Google EDLA Certified, 50 touch points

Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.

We can also offer a full installation service:

Site Survey
Equipment recommendation
Installation
Testing
Staff Training

Contact our team now to discuss on live chat, email, phone or book a video call.

Description

The first Google-EDLA-certified interactive display, IMPACT Lux, combines premium design with exceptional performance. Now with improved specifications, whilst still featuring integrated NFC/RFID technology, an ultra-responsive HPIR touch frame with palm rejection, it delivers precision and effortless interaction, setting a new benchmark for interactive displays. With an Android 15 operating system, IMPACT Lux 2 is ahead of the curve, delivering the most powerful functions and features.

A Class-Leading Collaborative Experience

What's new for IMPACT Lux 2

DC Dimming

DC Dimming delivers flicker-free brightness control, especially at low levels, reducing eye strain and headaches for more comfortable long-term use.

WiFi 6E

WiFi 6E offers next-gen speed and stability, delivering faster, smoother wireless performance with less interference—perfect for high-demand, connected environments.

Lux 2 UI Interface

The new Lux 2 UI brings a refreshed, modern interface for smoother navigation and an enhanced user experience.

Android 15

Built with the future in mind, this device includes Android 15, ensuring long-term support, improved features, and better security as new updates roll out.

Lower power consumption

IMPACT Lux 2 uses less power without compromising performance, saving energy and cutting long-term costs.

Improved touch responsiveness

With a 400Hz scan rate, touch responsiveness is faster and more accurate than ever, delivering a seamless, lag-free experience that keeps up with every gesture and pen stroke.

Full range of sizes

65” 4K | 75” 4K | 86” 4K

Resolution

4K UHD (3840 x 2160)

Operating System

Android 15

Connectivity

WiFi 6E

Convert Files

Smart / Promethean / PPT files

Audio

2 x 20W Front Facing Speakers & 2 x 10W Subwoofers

Google EDLA Certified
Interactive Display

With the full Google Education Licence experience, your favourite Google apps are preloaded and available directly from your display. Seamlessly incorporate digital resources and tools into your lessons to make accessing, editing, sharing and collaborating easy.

What is EDLA?

EDLA stands for Enterprise Device License Agreement, a Google program providing advanced Android device security features. These features include data encryption and device management tools, among others.

Advanced Security Protection

EDLA-certified devices offer a range of security features, such as password protection, two-step authentication, data encryption, and others. These features help prevent unauthorised access to your device and data and allow you to remotely wipe or lock your device in case of theft or loss.

Software included with no subscription fees

CleverLive

Dynamic, easy to use cloud digital signage platform. Update and control your screens anywhere in the world from a single portal login.

Learn more

LYNX Whiteboard

Create dynamic lessons and activities with LYNX Whiteboard. Hundreds of pre-made STEM activities and unlimited access to multimedia resources.

Learn more

CleverMDM

We have partnered with leading MDM specialists, Radix Technologies, to consolidate all of your organisation's displays into one management system.

Learn more

Features that make an IMPACT

Ultimate flexibility

50 touch points

IMPACT Lux by Clevertouch offers an impressive 50 touch points, allowing multiple users to interact with the display simultaneously. This feature promotes collaborative learning and encourages student engagement by enabling multiple students to work together on the screen at the same time. Whether it's group projects, interactive activities, or brainstorming sessions, the 50 touch points ensure that everyone's input can be captured and displayed in real-time.

A hygienic classroom environment

Antibacterial Glass

IMPACT Lux is equipped with state-of-the-art micro antibacterial glass. This helps maintain a cleaner and more hygienic classroom environment by reducing the presence of germs on the screen surface. The antibacterial properties of the glass contribute to a healthier teaching and learning environment, particularly in shared spaces where multiple students interact with the display.

Integrate NFC

Integrated NFC Technology provides a convenient solution for teachers to access their personalised profiles on any Clevertouch display worldwide. It offers flexibility, convenience, and a seamless user experience, allowing teachers to easily adapt to different classrooms and locations while maintaining their preferred settings and files.

Rich audio quality

Super Wide Sound

With its integrated audio capabilities, the display eliminates the need for additional soundbars or external speakers. IMPACT Lux is equipped with a 2x 20W front-facing speaker system, ensuring powerful and clear audio output. This setup provides a wide soundstage, allowing students to hear audio content from various positions in the classroom. The addition of 2x 10W subwoofers adds depth and richness to the audio.

Improved overall touch accuracy

HPIR touch frame with palm rejection

This state-of-the-art touch technology utilises high precision infrared sensors placed around the edges of the screen to detect touch input. This technology enables accurate and responsive touch interaction, allowing users to interact with the display seamlessly. One of the key features is palm rejection, which helps distinguish between intentional touch input, such as using a finger or stylus, and unintentional touch input, such as resting your palm on the screen while writing or drawing. This ensures that only deliberate touch gestures are recognised, preventing accidental interactions and improving the overall touch accuracy.

Technical Specifications

Display Panel

Diagonal Size 86" 4K
Screen Type LCD
Aspect Ratio 16:9
Display Colours 1.07 Billion (10 bit)
Resolution 4K UHD (3840x2160) @ 60Hz
Response Time 5ms
Refresh Rate 60Hz
LCD Viewing Angle 178°
Brightness 500 cd/m2
Contrast Ratio 5500:1
Dynamic Contrast Ratio 6000:1
DC Dimming for Flicker Free: Yes
Glass Hardness AG Tempered Glass - Mohs Level 7
Glass Thickness 3mm
NEW Glass Type Low Parallax 0mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
NEW Antibacterial Glass Yes
NEW Antibacterial Power Button Yes
Main Board RK3588
Life of Screen 50,000 Hours
NTSC 72%

Interactivity

Writing Technology High Precision IR Technology + Material Classification Sensor
NEW Continuous Touch Points 50
Touch Resolution 32768x32768px
Response Time ≤5ms
Touch Accuracy ±1mm
Minimum Object Size 2mm
Touch Tool Finger, passive pen, opaque objects
Simultaneous Writing Yes
Ink In Tools Yes - LYNX
Pens Included 2
NEW Pen Type Dual Recognition Stylus | Super Cool Stylus 2.0
Pen Holder Integrated magnetic pen holders
Pen Tip Diameter 3mm/7mm
Pen & Touch Differentiation Yes
Pen Identities 2
Palm Rejection Yes
Annotation Over Any Source Yes
Classroom Essential Apps Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
Compatibility* Windows 10, Linux, Mac, Android, Chrome
Tracking Rate ≥1m/s
Scan Rate ≥400hz
Gestures & Edge Swipes Windows Supported, OSX With additional Driver

Connectivity

OPS Slot 1 - Intel Spec 80Pin
HDMI In 3
HDMI Out 1
USB-A 2.0 3
USB Touch (type B) 3
NEW USB A 3.0 (faster data transfer) 2 x USB Front Type A 3.0 with faster data transfer 2 x USB Side Type A 3.0 with faster data transfer
NEW USB C (Video, Audio & Touch) 1 x USB Side Type C with video, audio, touch & network 1 x USB Front Type C with video, audio, touch, network, and 100W charging
NEW USB C (Data Transfer) 1 x USB Top Type C Supports data transfer for top mounted camera
NEW USB C Out 1 x USB Type C Out with video, audio, touch and network
Display Port In 1
LAN In (RJ45) 1
LAN Out (RJ45) 1
RS-232 Yes
Wake-on-Lan Yes
Wireless Adapter 2.0 + WAP
Clevertouch WiFi Module Yes
Bluetooth Yes - 5.2
Audio In 1
Optical Out 1
Headphone 1 (3.5mm)
Total touch out ports 3
NFC Reader / Writer Integrated
Camera Optional Extra
Proximity Sensor Yes
NEW WiFi IEEE 802.11a/b/g/n/ac/ax with 2 × 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
NEW WiFi Generation WiFi 6E
NEW WiFi Speed Capable of speeds up to 1GB

Computing

NEW Operating System Android 15
NEW System Version Lux 13
NEW RAM 8GB
NEW Internal Storage 128GB
CPU Quad Core A76 + Quad Core A55
GPU Mali G610 MC4
Android Resolution 4K
Integrated Lux UI Yes
NEW System Architecture 64-bit
NEW Google Certification EDLA Certified (Enterprise Device Licence Agreement)
NEW Access to Google Playstore Apps Yes (certified)
NEW Access to Microsoft Apps Yes (certified)
NEW Access to Google Cloud Services Yes (certified)

Power

Power Requirements 100 - 240 ~ 50/60Hz 3.5A
Power Consumption (Normal) 86" 116.75W
Power Consumption (Standby) ≤0.3W
Ultra Quiet Fanless Design Yes

Operating & Storage Environment

Operating Temperature 0˚ to 40˚
Storage Temperature -20˚ to 60˚
Operating Humidity 10% to 90% RH
Storage Humidity 10% to 90% RH
Altitude Below 5000 metres

Audio

NEW Dual Front Facing, Bass Enhanced Speakers 2 x 20W Front Facing + 2x 10W Subwoofer
Audio Out Yes
SPDIF / Fibre Yes
Sound Channel 2.2
Line Array Microphone (noise cancelling) 8-array
Super Wide Sound Yes
Amplifier Power 95W
Sound Pickup Angle 180˚
Sound Pickup Distance 8M
Frequency Domain 32kHz

IMPACT Lux 2 Built-In Features

LYNX™ App With Online Lesson Planning Yes
Embedded Digital Signage Yes
Clevershare™ Mirroring Any Device To The Board Free for the life of the screen (touch back)
Integrated Personalised Account Profiles Yes
Cloud Account Access OneDrive, Google Drive, LYNX Cloud
Embedded Room Booking Yes
Whiteboard Annotation Yes
Email Out Direct From Touchscreen Yes
Scan QR Code For Saving Work Yes
Alerts and Announcements Yes
Over-the-Air Updates Yes
Remote Management Of Touchscreens (MDM) Yes - One year license
NEW CleverLauncher™ Yes
NEW LynxShare™ Yes
NEW LynxCloud™ Yes

Inside your Clevertouch Box

What's In The Box

(1) Clevertouch IMPACT Lux 2
(1) 3M Length HDMI Cable
(1) 3M Length USB cable (A-B)
(1) 1.5M USB C Cable
(1) 3M Regional Power Cable
(1) Remote Control
(2) Batteries for Remote Control
(2) Super Cool Stylus 2.0
(1) User Guide
(1) Quick Install Guide
(1) Wireless Adapter 2.0 + WAP
(1) NFC Card

Dimensions

Physical Spec

Panel Dimensions
86” 1957 x 1178 x 99mm

Packed Dimensions
86’’ 2110 x 225 x 1304mm

Net Weight
86’’ 61.25kg

Packed Weight
86’’ 72.8kg

VESA Mount Point
86” 800 x 600mm

More Information

More Information
Brand	CleverTouch
Education discount	EDUCATION DISCOUNTS
Google EDLA	Yes
Screen Size	86"
Android Version	15
