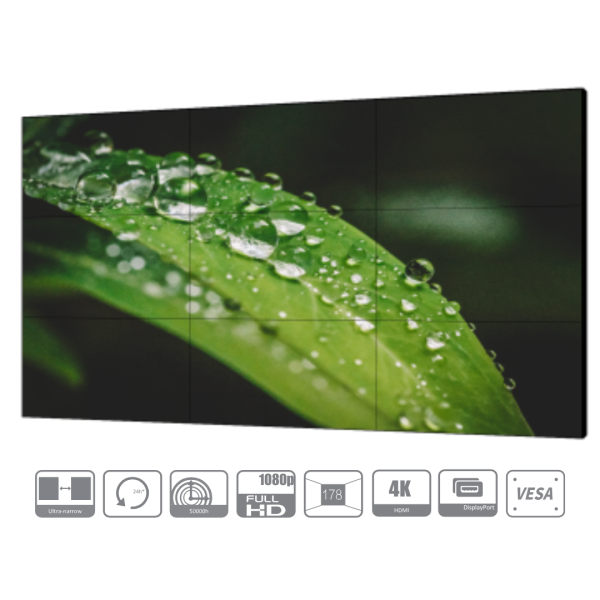

49" Ultra Series 1080p Video Wall Monitor, 3.5mm Narrow Bezel to Bezel design (2.3mm left/top and 1.2mm right/bottom), Built-in Picture Splicing Function, 500cd/m2 brightness, 1400:1 high contrast, HDMI, DVI, VGA, DP (Display Port) inputs with DP UHD (4K) output function
49" Ultra Series 1080p Video Wall Monitor, 3.5mm Narrow Bezel to Bezel design (2.3mm left/top and 1.2mm right/bottom), Built-in Picture Splicing Function, 500cd/m2 brightness, 1400:1 high contrast, HDMI, DVI, VGA, DP (Display Port) inputs with DP UHD (4K) output function
24/7 All-day Operation
With industrial grade LCD panel, Dahua LCD video walls support continuous operation all day long.

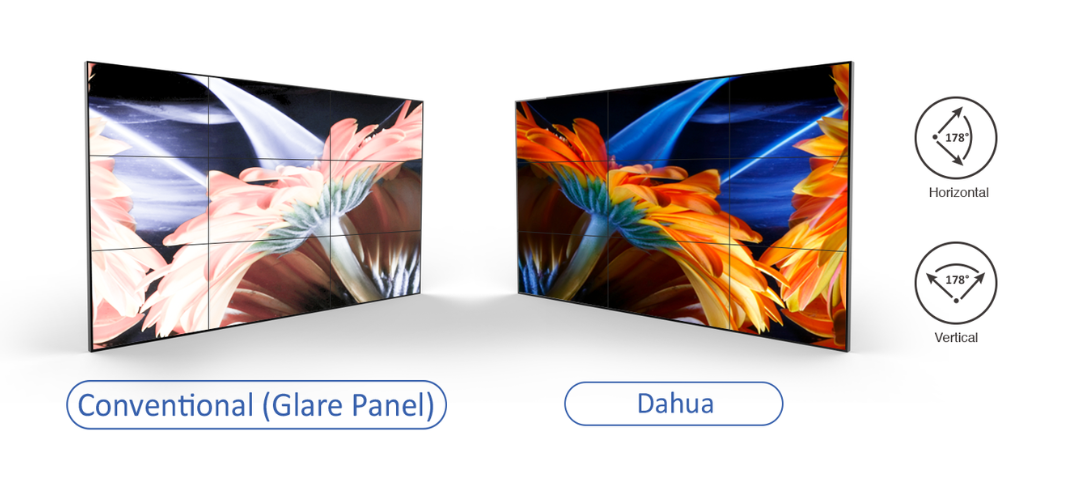

Clear & Vivid Images
Dahua adopts anti-glare panel with 178° wide viewing angle, which can provide vibrant image quality in any location.

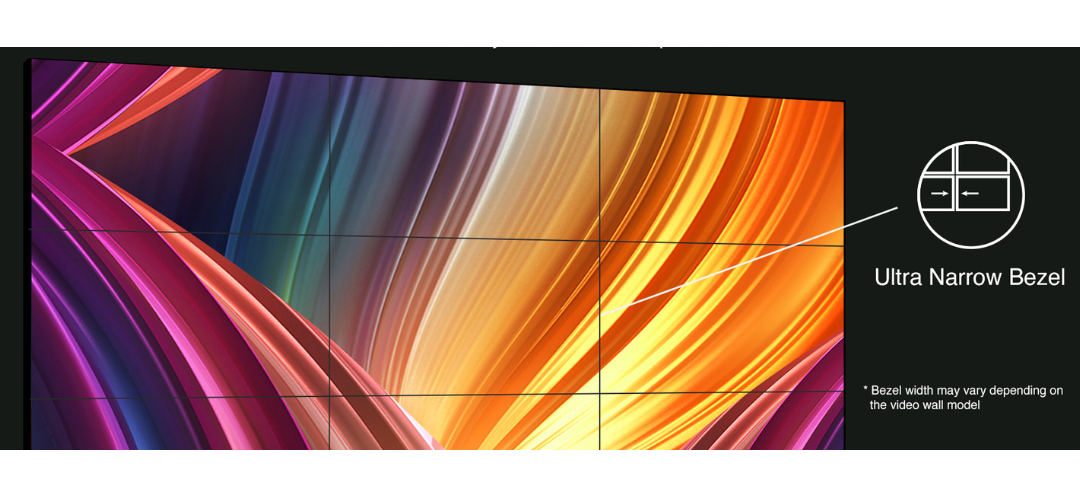

Nearly Seamless Splicing Effect
Ultra-narrow bezel-to-bezel width and professional backlight design can create nearly seamless visual experience.
Uniform Display Effect
Dahua's colour calibration technology creates high colour uniformity between different display units, significantly improving the entire project delivery process.

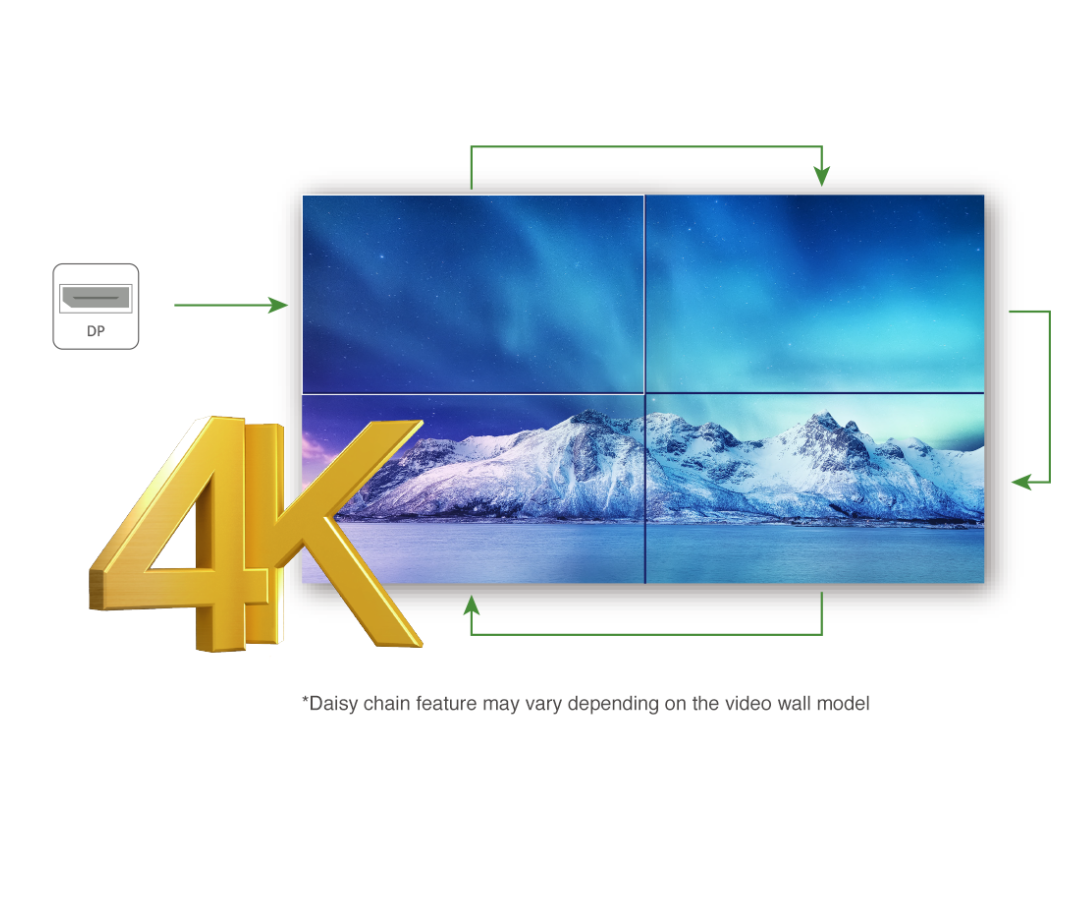

Cost-effective Splicing Solution
The built-in DP daisy chain function allows users to set up a UHD video wall without the need of any video splicing controller or splitter, making it simple and economical.

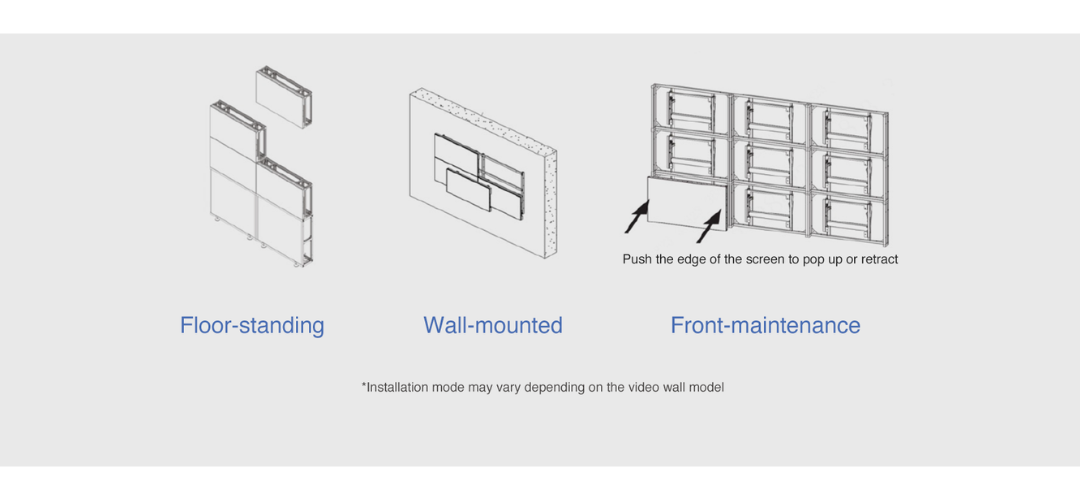

Flexible Installation Modes
To ensure quick and easy installation, all Dahua video wall displays support floor-standing or wall-mounted installation modes. We also offer front-maintenance bracket as additional option.
> Industrial level ADS LCD panel, suitable for continuous 24h/7 operation
> Ultra-narrow 3.5mm bezel-to-bezel design
> Anti-glare panel, vivid and memorable image quality
> Factory calibration technology for high color uniformity
> Built-in 3D noise reduction system and picture splicing function
> Abundant interfaces HDMI, DVI, VGA, DP (UHD daisy chain), RS232, Audio
> Up to 4K@60Hz signal input by DP IN or HDMI 1 interface, up to 4K@30Hz signal output by DP OUT interface
> Infrared, RS232 dual mode, supporting remote control by computer
> Professional thermal design to extend device lifespan
> Built-in power, low energy consumption, ultra-quiet
> Modular structure design, multiple installation modes
> Widely used in surveillance center, command center, meeting room, commercial display scenes, etc.
Model DHI-LS490UCM-UF
Display
Diagonal Size 49"(16:9)
Panel Type ADS
Resolution 1920×1080 (FHD)
Bezel width 2.3mm (T/L), 1.2mm (B/R)
Backlight Direct LED
Brightness 500 cd/m²
Contrast Ratio 1200:1
Pixel Density 46dpi
Viewing Angle H178°, V178°
Response time (G-to-G) 8ms
Color Depth 8bit (16.7M)
Color Temperature 10,000K
Surface Treatment Haze 25%, 3H
MTBF 50,000h
Signals
Input VGA(D-Sub)×1, DVI-D×1, HDMI×2, DP×1, RS232×1, Audio×1, IR×1
Output DP×1, RS232×1, Audio×1
General
Power Supply AC100V~AC240V, 50/60 Hz
Power Consumption (Standby) <0.5W
Power Consumption (Typical) 135W
Power Consumption (Max.) 155W
Energy Efficiency Class (EU) G
Installation Mode Floor-standing, wall-mounted
VESA 600×400mm,M6
Control Mode Infrared, RS232 dual mode, supporting remote control by computer
Gross Weight 28.5kg (62.8Ib)
Net Weight 19.5kg (43.0Ib)
Product Dimension (W×H×D) 1078.4mm×608.5mm×121.1mm (42.5"×24.0"×4.8")
Package Dimension (W×H×D) 1265mm×850mm×270mm (49.8"×33.5"×10.6")
Operating Environment
Temperature 0℃~+40℃
Humidity 10%RH~80%RH (noncondensing)
VESA 600×400mm,M6
Gross Weight 28.5kg (62.8Ib)
Net Weight 19.5kg (43.0Ib)
Product Dimension (W×H×D) 1078.4mm×608.5mm×121.1mm (42.5"×24.0"×4.8")
Package Dimension (W×H×D) 1265mm×850mm×270mm (49.8"×33.5"×10.6")
