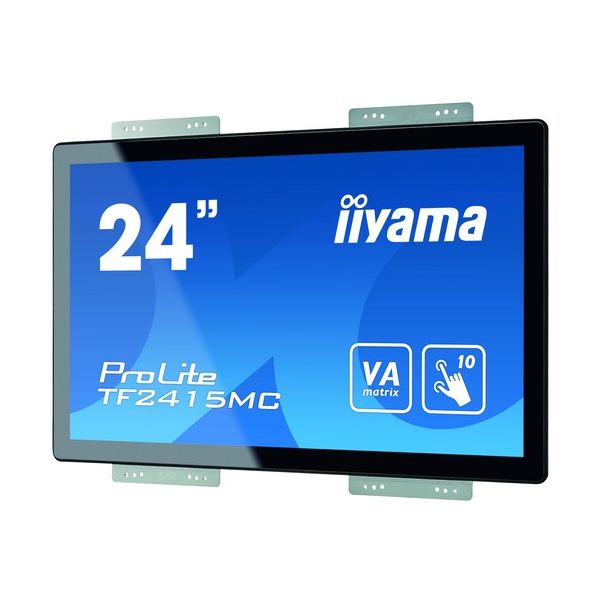

iiyama ProLite TF2415MC-B2 24' Capacitive Touch Screen Display

iiyama ProLite TF2415MC-B2 – 23.8" Full HD Open Frame Touchscreen Display Built for Professional Integration

The iiyama ProLite TF2415MC-B2 is a robust, high-performance 23.8" Full HD open frame touchscreen monitor designed specifically for demanding environments where durability, precision, and versatility are essential. With its sleek edge-to-edge design, advanced PCAP touch technology, and rugged build, it is an ideal solution for kiosk integrators, digital signage, retail, industrial control systems, and other high-traffic public installations.

Elegant Design with Professional-Grade Durability

At the heart of the TF2415MC-B2 is a sharp 1920 x 1080 (Full HD) VA LED display that delivers vibrant colors, deep contrast, and wide 178° viewing angles, ensuring consistent and clear visuals from every direction. The edge-to-edge glass surface is not only aesthetically striking but also offers high scratch resistance, supported by a foam seal finish that allows for seamless flush integration into enclosures.

Designed for demanding environments, the monitor features IP65-rated front protection against dust and water ingress. It’s built to endure heavy usage and harsh conditions, making it ideal for public-facing installations like information kiosks, POS systems, and factory automation.

Advanced Touch Capabilities with PCAP Technology

The 10-point projected capacitive (PCAP) touch system provides a highly accurate and responsive user experience. Whether interacting with fingers (bare or gloved) or a stylus, the TF2415MC-B2 ensures reliable performance—even through a layer of glass, thanks to its Touch Through Glass functionality. This makes it perfect for storefront windows, in-store promotions, interactive museum exhibits, and high-traffic terminals.

Tested Tough for Real-World Demands

Durability is built-in with ball-drop-test compliance, proving the screen can withstand high impact without compromising touch functionality. The screen is also treated with an anti-fingerprint nano coating, which not only improves touch responsiveness but also keeps the surface cleaner, reduces glare, and enhances clarity.

Flexible Mounting and Integration Options

The TF2415MC-B2 is designed for ease of integration into various environments. It comes with external open frame mounting brackets and supports landscape, portrait, and face-up orientations, giving system integrators maximum flexibility in deployment. The 100 x 100 mm VESA mount ensures compatibility with a wide range of stands and mounts.

Comprehensive Connectivity and Compatibility

Connectivity is straightforward and versatile with HDMI, DisplayPort, VGA, USB (for touch input), and audio out. The display is compatible with both Windows and Linux operating systems, offering broad integration into existing platforms and embedded systems.

Energy-Efficient and Certified for Global Use

Operating with low power consumption (25 W typical, 1.2 W standby), the monitor is rated Energy Class F and complies with international certifications including CB, CE, TÜV-Bauart, CU, and cULus. It is built to perform reliably in temperatures ranging from 0–40°C and humidity up to 80%, ensuring dependable operation year-round.

Key Features at a Glance:

• Screen Size: 23.8" (60.5 cm) Full HD (1920 x 1080)

• Touch Technology: 10-point Projected Capacitive (PCAP)

• Panel Type: VA LED, 3000:1 contrast ratio

• Brightness: 315 cd/m²

• Response Time: 16 ms

• Viewing Angles: 178° horizontal / 178° vertical

• Front Protection: IP65 rated

• Mounting: VESA 100x100, open frame brackets, multi-orientation

• Touch Through Glass: Yes

• Anti-Fingerprint Coating: Yes

• Ball-Drop-Test Compliant: Yes

• Connectivity: VGA, HDMI, DisplayPort, USB (touch), Audio Out

• Supported OS: Windows, Linux

• Dimensions (W x H x D): 575 x 347 x 42.5 mm

• Weight: 5.8 kg

• Power: 25 W typical, 1.2 W standby

Whether you’re designing a retail self-service station, a control panel in an industrial environment, or an interactive museum exhibit, the iiyama ProLite TF2415MC-B2 offers the performance, durability, and seamless integration needed for high-end professional applications.
