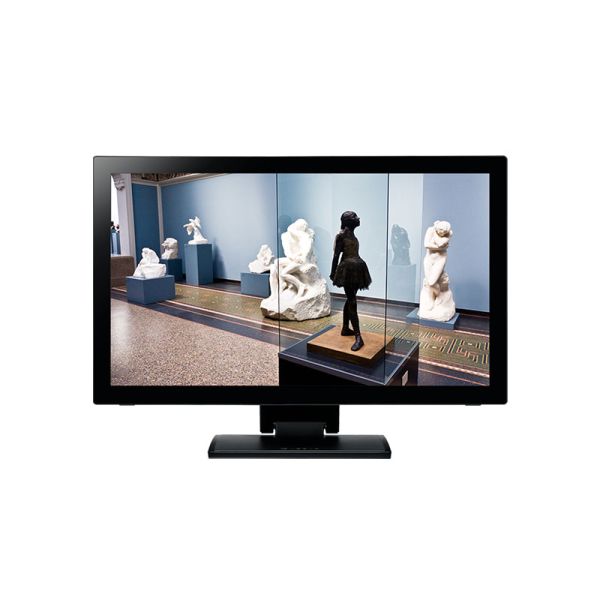

AG Neovo TM-22 22-Inch 1080p Touch Screen Monitor

£355.67 £296.39

The AG Neovo TM-22 is a 21.5-inch Full HD touch monitor with 10-point projected capacitive technology, delivering responsive and precise interaction. Its edge-to-edge 7H hardened glass ensures durability in high-use environments like retail, education, and healthcare. With versatile tilt adjustment, VESA mounting, and multiple input options including HDMI, VGA, and DisplayPort, it offers flexible installation. Built for 24/7 operation, the TM-22 combines sharp visuals, ergonomic design, and dependable performance for professional touch applications.

IN STOCK IN STOCK
SKU
TM-22

Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.

We can also offer a full installation service:

  • Site Survey
  • Equipment recommendation
  • Installation
  • Testing
  • Staff Training

Contact our team now to discuss on live chat, email, phone or book a video call.

The AG Neovo TM-22 is a high-performance 21.5-inch Full HD touch screen monitor designed for demanding professional environments such as retail, healthcare, education, and industrial applications. It features projected capacitive (PCAP) 10-point multitouch technology for smooth, accurate, and intuitive user interaction.

With a native resolution of 1920 × 1080, the TM-22 delivers crisp visuals and sharp detail. The 2.4 mm edge-to-edge hardened glass surface offers enhanced durability with a 7H hardness rating, making it resistant to scratches and ideal for high-traffic public installations.

This monitor is equipped with a dual-hinge stand that allows for versatile tilt and height adjustments, enabling flexible positioning from nearly flat to upright viewing angles. It also supports VESA 100 × 100 mm mounting for wall or arm installations.

Connectivity options include VGA, HDMI, DisplayPort, and USB for touch input, along with four USB ports for peripheral connections. Built-in stereo speakers and a 3.5 mm audio output provide additional multimedia support.

With a fast 3 ms response time, wide viewing angles, and low power consumption, the TM-22 is built for 24/7 operation while maintaining energy efficiency. It is compatible with Windows, Linux, and macOS operating systems without the need for additional drivers.

Whether deployed as part of a kiosk, point-of-sale system, or interactive signage, the AG Neovo TM-22 offers reliability, functionality, and premium touch performance in a durable and professional-grade design.

Display

  • Panel Type: LED-backlit TFT LCD

  • Screen Size: 21.5 inches

  • Resolution: 1920 x 1080 Full HD

  • Brightness: 250 cd/m2

  • Response Time: 3 ms (GTG)

  • Viewing Angles: 170 degrees horizontal, 160 degrees vertical

  • Color Support: 16.7 million colors

  • Pixel Pitch: 0.248 mm

  • Contrast Ratio: 1000 to 1 (static), 20000000 to 1 (dynamic)

Touch Features

  • Touch Technology: Projected Capacitive (PCAP)

  • Touch Points: 10-point multi-touch

  • Positional Accuracy: ±1.0 mm

  • Touch Interface: USB Type B

Connectivity

  • VGA Input: 1 x D-Sub

  • HDMI Input: 1 x HDMI

  • DisplayPort Input: 1 x DisplayPort

  • USB Hub: 4 x USB 3.0 ports

  • Audio: 3.5 mm audio in and out, 2 x 2W built-in speakers

Mechanical and Ergonomics

  • Stand: Tilt from -5 to 90 degrees, height adjustable

  • VESA Mount: 100 x 100 mm

  • Kensington Lock Slot: Yes

  • Glass: 7H hardness, edge-to-edge, 2.4 mm thickness

Power

  • Power Supply: Internal, 100 to 240 V AC, 50/60 Hz

  • Power Consumption: 14 W typical, less than 0.5 W standby

Environment

  • Operating Temperature: 0 to 40 degrees Celsius

  • Humidity: 10 to 85 percent non-condensing

Certifications

  • Standards: FCC, CE, LVD, WEEE, RoHS, REACH, EAC, UKCA

Physical Dimensions and Weight

  • Dimensions with Stand: 522.4 x 385 x 238.5 mm

  • Dimensions without Stand: 522.4 x 318.4 x 57.2 mm

  • Weight with Stand: 6.3 kg

  • Weight without Stand: 3.9 kg

  • Shipping Weight: 8.1 kg

More Information
ean 4710739592429
Brand AG Neovo
Education discount EDUCATION DISCOUNTS
Indoor or Outdoor Indoor
Google EDLA No
Screen Size 22"
