Hikvision AIO LED P1.25 HOB, 600nit (DS-D4512CB108-2FQ)
£12,799.20
£10,666.00
The Hikvision DS-D4512CB108-2FQ is a 108-inch P1.2 all-in-one indoor LED display combining a 1920 × 1080 LED screen with integrated Android processing, audio, networking and video interfaces. Designed for meeting rooms, conference spaces, corporate communications and large-format digital signage, it offers 600 cd/m² brightness, 3840 Hz refresh rate and a slim 47.1 mm display depth.
IN STOCK
SKU
DS-D4512CB108-2FQ
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today

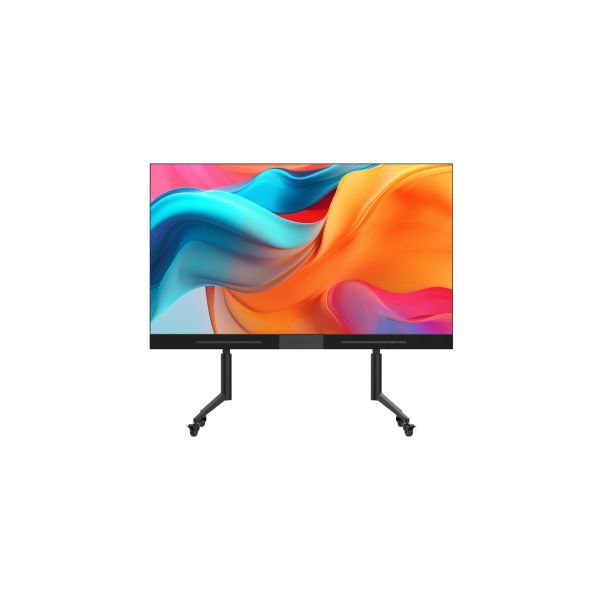

HIKVISION DS-D4512CB108-2FQ 108" P1.2 All-in-One LED Display
The DS-D4512CB108-2FQ is Hikvision's 108-inch LED All-in-One display, providing a complete large-format visual solution without the complexity normally associated with assembling separate LED cabinets, controllers and processing hardware.
The display uses P1.25 mm SMD Triad LED technology, delivering a 1920 × 1080 native resolution and 640,000 dots/m² pixel density across a 3.2 m² active display area. With 600 cd/m² brightness, 3000:1 contrast, 160° viewing angles and a 3840 Hz refresh rate, it is designed for detailed presentations and smooth video playback at an optimal viewing distance of approximately 3 metres.
A highly integrated mainboard combines the control system, Android operating system, networking and video interfaces. The display runs Android 12, with Windows support available when paired with an optional OPS module. It includes 16 GB memory and 256 GB storage for the integrated Android system, Gigabit networking, Wi-Fi hotspot capability and Bluetooth 5.1.
The all-in-one design also incorporates 2 × 18 W speakers, four HDMI inputs, HDMI output, USB 3.0, USB-C, RS232, optical audio and analogue audio connections. Its WonderOS 3.0 environment is designed for large-screen interaction, wireless screen sharing and conference-oriented applications.
The modular construction provides front maintenance, quick-lock cabinet connections and a segmented pre-assembly design intended to simplify installation. It can be wall mounted or used with a mobile floor-standing bracket.
Key Features
- 108-inch all-in-one LED display
- P1.2 / 1.25 mm pixel pitch
- 1920 × 1080 native resolution
- 640,000 dots/m² pixel density
- 3.2 m² active screen area
- 600 cd/m² brightness
- 3000:1 contrast ratio
- 3840 Hz refresh rate
- 16-bit grayscale
- 160° horizontal / vertical viewing angle
- Front maintenance
- Integrated Android 12 system
- 16 GB RAM / 256 GB storage
- Windows 10 support with optional OPS
- Integrated Gigabit LAN with router mode
- Wi-Fi hotspot capability
- Bluetooth 5.1
- 4 × HDMI input
- HDMI output
- USB 3.0 and USB-C
- RS232 control
- 2 × 18 W integrated speakers
- WonderOS 3.0
- Wireless screen sharing support
- Wall mounting or mobile floor-standing installation
- Slim 47.1 mm display depth without base
- Integrated all-in-one design for simplified deployment
What's Included
- LED module spare parts ×4
- Wall-mounting bracket
- Bottom panel connector
- Multilingual manual
- OPS power cable
- OPS signal cable
- Main power cable
- Ethernet cable
- Cabinet cascade power cable
- Spare lamps
- IC components
- Screws and expansion bolts
- Installation tools
| Specification | DS-D4512CB108-2FQ |
|---|---|
| Product type | Indoor All-in-One LED Display |
| Screen size | 108" / 275.3 cm |
| LED type | SMD Triad LED with glue |
| Pixel pitch | 1.25 mm |
| Pixel category | P1.2 |
| Native resolution | 1920 × 1080 |
| Pixel density | 640,000 dots/m² |
| Active screen area | 3.2 m² |
| Screen dimensions | 2400 × 1350 mm |
| Aspect ratio | 16:9 |
| Optimal viewing distance | 3 m |
| Brightness | 600 cd/m² |
| Contrast | 3000:1 |
| Viewing angle | 160° H / 160° V |
| Colour temperature | 3000–10,000 K adjustable |
| Colour uniformity | ≥97% |
| Brightness uniformity | ±0.003 Cx, Cy |
| Refresh rate | 3840 Hz |
| Frame frequency | 30 / 60 Hz |
| Grayscale | 16 bit |
| Driving method | Constant current |
| Maintenance | Front maintenance |
| Cabinet material | Aluminium alloy |
| Operating system | Android 12 |
| Optional Windows | Windows 10 via OPS |
| Android CPU | A76 × 4 + A55 × 4 |
| Android CPU frequency | Up to 1.5 GHz |
| Windows CPU | Intel Core i5-11390H |
| Android memory | 16 GB |
| Android storage | 256 GB |
| Windows memory | 16 GB |
| Windows storage | 256 GB |
| Network | Integrated Gigabit LAN |
| Router mode | Supported |
| Wi-Fi | Station + AP/hotspot mode |
| Bluetooth | Bluetooth 5.1 BLE |
| HDMI input | 4 |
| HDMI output | 1 |
| Line audio input | 1 |
| Line audio output | 1 |
| SPDIF output | 1 |
| USB 3.0 | 2 |
| USB-C | 1 |
| Internal USB 2.0 | 1 |
| RS232 | 1 |
| Speakers | 2 × 18 W |
| Cabinet power supply | 4.2 V / 40 A |
| Control power supply | 19 V / 8 A |
| Standby consumption | ≤0.5 W |
| Maximum consumption | ≤1500 W |
| Average consumption | ≤500 W |
| Input voltage | 110–240 VAC, 50/60 Hz |
| Operating temperature | -10°C to +40°C |
| Operating humidity | 20–80% RH, non-condensing |
| Storage temperature | -10°C to +50°C |
| Storage humidity | 10–90% RH, non-condensing |
| Dimensions with base | 2411.6 × 2274.95 × 707.5 mm |
| Dimensions without base | 2411.6 × 1475.9 × 47.1 mm |
| Mounting | Wall mounting / mobile floor-standing bracket |
| Packaging | Wooden case |
| Net weight | 85 kg |
| Package dimensions | 1494 × 1239 × 454 mm |
| Brand | Hikvision |
|---|---|
| Education discount | EDUCATION DISCOUNTS |
| Google EDLA | No |
| Screen Size | 108" |
| Android Version | 12 |
| Resolution | Full HD / FHD (1920 x 1080) |
| Brightness | 600 nits |
