Hikvision DS-D5A86RB/A2 86" Project Series Interactive Touchscreen

Hikvision OPS Module Win 11 i5-12th

£778.80 £649.00

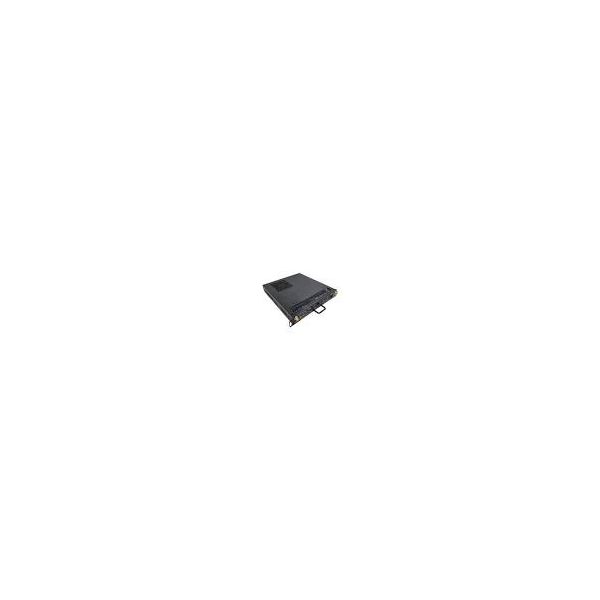

The Hikvision DS-D5AC12T5-8S2 OPS Slot-in PC is a powerful computing module designed for compatible Hikvision interactive flat panel displays. Featuring a 12th Gen Intel® Core™ i5 processor, 8GB RAM, and a 256GB SSD, it transforms an interactive display into a fully functional Windows-based computer. With built-in Wi-Fi 6, Bluetooth 5.2, multiple USB ports, and HDMI/DisplayPort outputs, it provides reliable performance for collaboration, presentations, and digital learning environments.

IN STOCK, ONLY 1 LEFT! IN STOCK, ONLY 1 LEFT!
SKU
DS-D5AC12T5-8S

The Hikvision DS-D5AC12T5-8S2 is a high-performance OPS (Open Pluggable Specification) slot-in computer module designed to seamlessly integrate with compatible Hikvision interactive flat panel displays. By installing directly into the display’s OPS slot, it eliminates the need for external PCs, reducing cable clutter while providing a powerful and compact computing solution for meeting rooms, classrooms, and collaboration spaces.

Powered by a 12th Generation Intel® Core™ i5-12450H processor, the module delivers efficient multitasking performance for productivity applications, interactive presentations, and digital collaboration tools. The system includes 8GB of RAM and a fast 256GB SSD, ensuring smooth system operation, quick boot times, and reliable storage for files and applications.

Running Windows 11 Enterprise, the DS-D5AC12T5-8S2 provides a familiar and secure environment for business and education users. Integrated Wi-Fi 6 and Bluetooth 5.2 ensure fast wireless connectivity, while a variety of ports—including USB-C, USB 3.0, HDMI, DisplayPort, and Gigabit Ethernet—allow easy connection to peripherals, networks, and external devices.

Designed to meet the OPS standard, this slot-in PC integrates neatly inside the display chassis, maintaining a clean and professional installation while delivering powerful PC functionality. It is an ideal solution for interactive teaching, video conferencing, presentations, and collaborative work environments where reliability, performance, and simplicity are essential.

System

  • Operating System: Windows 11 Enterprise

  • Processor: Intel® Core™ i5-12450H (12th Gen)

  • CPU Clock Speed: 2.0 GHz base / up to 4.4 GHz turbo

  • CPU Cores / Threads: Up to 10 cores / 16 threads

  • Platform Architecture: Intel Alder Lake-H

  • Graphics: Intel® UHD Graphics (4K support)

  • Memory: 8 GB RAM

  • Storage: 256 GB NVMe SSD (M.2)

  • Cooling: Single heatpipe with fan cooling

Interfaces

Video & Audio

  • HDMI 1.4 ×1

  • DisplayPort 1.2 ×1

  • Audio In ×1

  • Audio Out ×1

USB

  • USB-C ×1

  • USB 3.0 ×4

  • USB 2.0 ×2

Network

  • RJ45 Gigabit Ethernet (10/100/1000 Mbps) ×1

  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

  • Bluetooth 5.2

  • External antennas ×2

Power

  • Input Voltage: 12–19 V DC

  • Maximum Power Consumption: ~95 W

  • Standby Power: 0.5 W

Environmental

  • Operating Temperature: 0°C to 40°C

  • Operating Humidity: 10% – 90% RH

  • Storage Temperature: −20°C to 60°C

  • Storage Humidity: 10% – 90% RH

Physical

  • Dimensions (W × H × D): 195 × 30 × 180 mm

  • Net Weight: ~1.22 kg

  • Colour: Black

Security

  • TPM: TPM 2.0 support

  • Width: 195 mm

  • Height: 30 mm

  • Depth: 180 mm

  • Net Weight: ~1.22 kg

  • Colour: Black

These dimensions make it a standard OPS (Open Pluggable Specification) module, fitting neatly into compatible Hikvision interactive flat panel displays.

More Information
Brand Hikvision
Education discount EDUCATION DISCOUNTS
Google EDLA No
