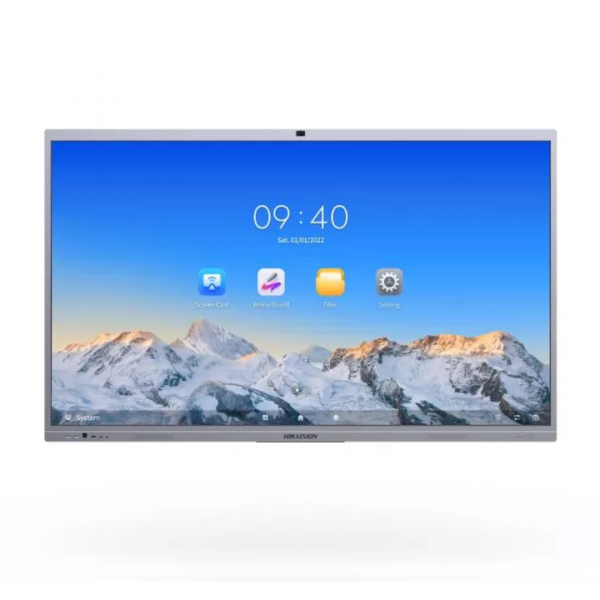

Hikvision DS-D5C75RB/B 75' Ultra Series 4K UHD Interactive Touch Screen Display with Integrated AI-Enabled 48MP Camera

Product Model DS-D5C75RB/B

Display

Screen Size 75 inch

Backlight DLED

Pixel Pitch 0.14325(H) × 0.42975(V) mm

Resolution 3840 × 2160 @60 Hz

Brightness 400 cd/m² （Typ.）

Color Depth 10 bit

Display Color 1.07 G

Response Time 5 ms

Panel Type VA

Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)

Color Gamut 72% NTSC (CIE1931) (Typ.)

Refresh Rate 60 Hz

Viewing Angle 178° (H)/178° (V)

Aspect Ratio 16:9

Surface Hardness 9H (Pencil) 7 (Mohs)

Surface Glass Anti-Glare Glass

Surface Haze 25% Haze

Glass Bonding Method Zero Lamination

Display Area 1650.24mm x 928.26mm

Working Duration 7 × 16 H

Transmittance 88% ± 3

Lifespan 50,000 hours

Touch

Type Infrared Touch Screen

Touch Point Up to 50-point multi-touch

Touch Response Time ≤ 2 ms

Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)

Touch Precision ± 0.5 mm (≥ 90% touching area)

Touch Resolution 32767 × 32767

Built-in System

Operation System Android 13.0

Memory 8 GB

Built-in Storage 128 GB

Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）

GPU Mali-G610 MC4

HDCP Version 2.3

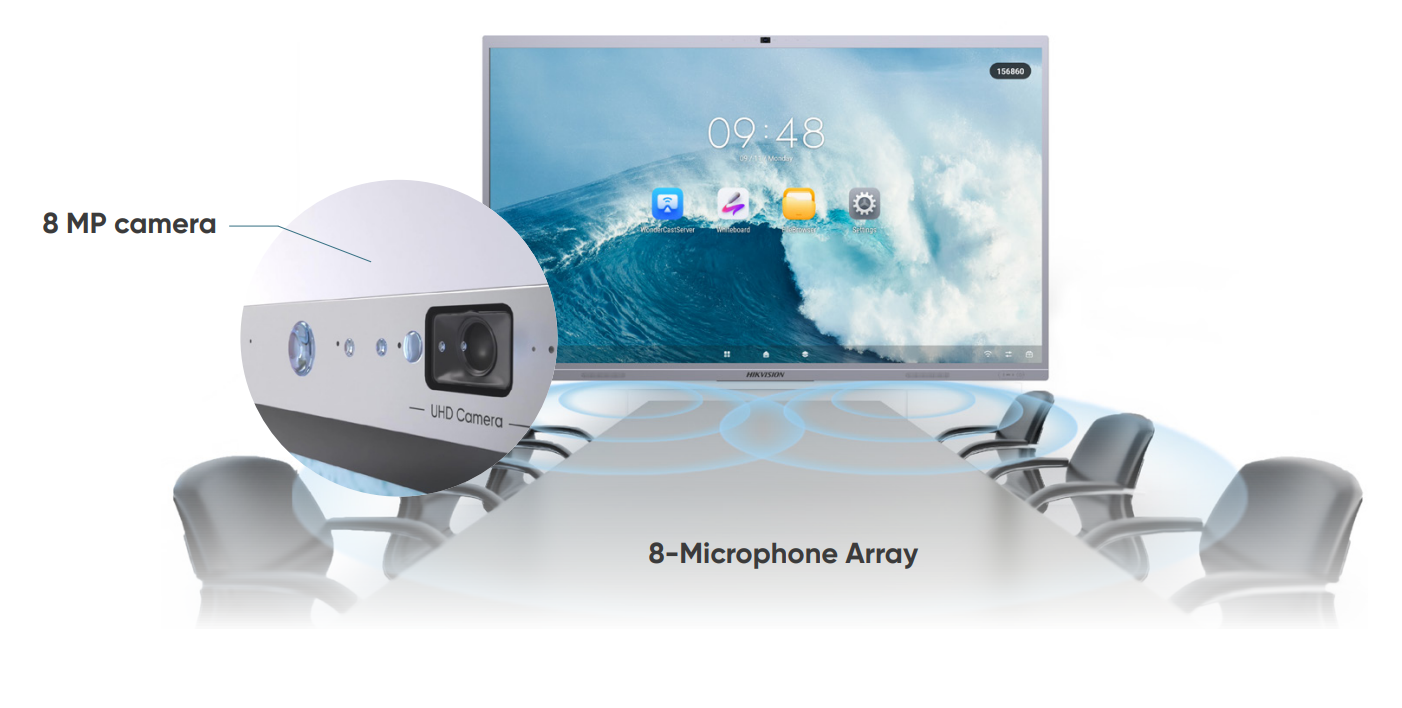

Camera

Pixel Pixel 48MP for Photos & 8 MP for Video

Camera Function Support intelligent switching between Android system, OPS, and PC.

Field Angle 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)

Distortion ≤2.5%

Camera Resolution Ratio Up to 4K

Microphone

Specification Omni-directional 8-array layout

Mic Function Echo reduction and smart noise-cancellation

Voice Distance 12 m

Sampling Rate 32 K

Mic Depth 16 bit

Internal Function

Loudspeaker Built-in 2 × 20 W+25W loudspeaker;

Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1

NFC Support screen mirroring by Android phones

Light Sensor Yes

Image Processing Technology Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .

Audio Processing Technology Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface

Video & Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1

Video & audio output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1

Control interface TOUCH-USB 3.0 × 3, RS232 × 1

Network Interface LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

Data Transmission Interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power

Power Supply 100 to 240 VAC, 50/60 Hz

Standby Consumption ≤ 0.5 W

Average Consumption < 150W

General

VESA 800 mm × 400 mm （4 × M8-25 mm）

Product dimensions 1713.2 mm × 1034.5 mm × 82.5 mm

Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.

Package Dimensions (W × H × D) 1937 mm × 264 mm × 1222 mm

Net Weight 51.23 kg

Gross Weight 67.62 kg

Working Environment

Working Temperature 0 °C to 40 °C (32 °F to 104°F)

Working Humidity 10%~90% RH
