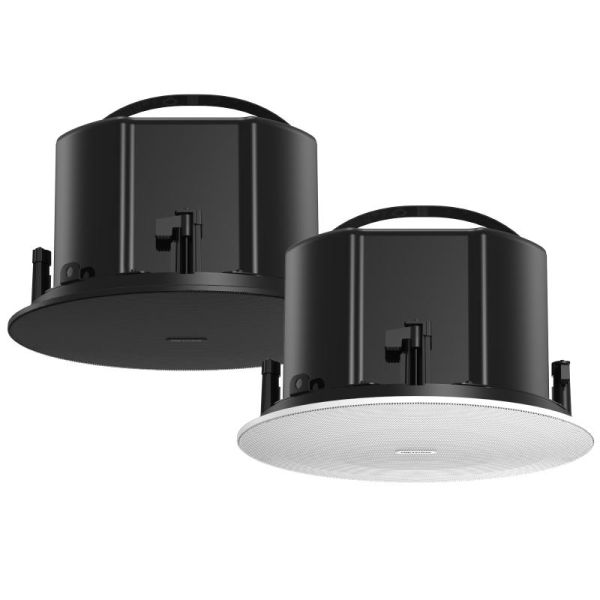

Hikvision IP Ceiling Speaker 1.2" Tweeter × 1, 6.5" Woofer × 1, 60w, Black, IP Speaker (DS-QAPS6R6-6P/BLACK)
£266.00
£221.67
The Hikvision DS-QAPS6R6-6P/BLACK is a professional 6.5-inch two-way network ceiling speaker with a 1.2-inch tweeter and 6.5-inch woofer. It supports AES67 network audio and PoE/PoE+/PoE++ connectivity, providing a discreet solution for commercial audio, background music, announcements and professional AV installations.
Please contact us for availability - Call on 01635 597044 or email [email protected]
SKU
DS-QAPS6R6-6P-BLACK
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-QAPS6R6-6P/BLACK combines a 6.5-inch woofer and 1.2-inch tweeter in a frameless ceiling-mounted design. It provides a 110° coverage angle, 90dB sensitivity and up to 106dB maximum output, with a 74Hz–20kHz effective bandwidth at -10dB.
As a network speaker, it receives audio over a 100M RJ45 Ethernet connection and supports AES67 network audio. Integrated DSP functions include delay, mixing, parametric EQ, automatic level control and digital crossover, allowing the speaker to be configured within professional networked audio systems.
The BLACK version has a black main body and black top cap, while retaining the same core specifications as the WHITE variant. Hikvision specifies Hi-PoE/PoE++ (802.3bt) power, with the current datasheet listing up to 60W.
Key features
- 6.5-inch network frameless ceiling speaker
- 1 × 6.5-inch woofer
- 1 × 1.2-inch tweeter
- Two-way speaker design
- 4Ω impedance
- 90dB sensitivity
- 106dB maximum output loudness
- 74Hz–20kHz (-10dB)
- 100Hz–20kHz (-3dB)
- 110° coverage
- 3.3kHz digital crossover
- AES67 network audio
- 100M RJ45 Ethernet
- PoE/PoE+/PoE++ compatible
- DSP with Delay, Mixing, PEQ and ALC
- Metal construction
- Black finish
- 300mm ceiling cut-out
- 174mm mounting depth
- Ceiling installation
| Specification | Details |
|---|---|
| Model | DS-QAPS6R6-6P/BLACK |
| Product type | Network ceiling speaker |
| Speaker type | Two-way |
| Woofer | 1 × 6.5-inch |
| Tweeter | 1 × 1.2-inch |
| Impedance | 4Ω |
| Sensitivity | 90dB @ 1m, 1W |
| Maximum output loudness | 106dB |
| Frequency response (-3dB) | 100Hz–20kHz |
| Frequency response (-10dB) | 74Hz–20kHz |
| THD | <0.5% @ 1W, 1kHz |
| Coverage angle | 110° |
| Crossover point | 3.3kHz |
| Crossover type | Digital |
| DSP algorithms | Delay, Mixing, PEQ, ALC, Digital Crossover |
| Network audio | AES67 |
| Network interface | 1 × RJ45 100M Ethernet |
| Audio input | Network input |
| Network protocols | AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 |
| API protocol | OTAP |
| Power | Hi-PoE / PoE++ (802.3bt), up to 60W |
| Material | Metal |
| Colour | Black main body / black top cap |
| Dimensions | Ø327.49 × 179.69mm |
| Mounting hole | Ø300mm |
| Mounting depth | 174mm |
| Installation | Ceiling mounting |
| Operating temperature | -10°C to +50°C |
| Operating humidity | ≤90%, non-condensing |
| Net weight | 4.4kg |
| Gross weight | 7.4kg |
| Package dimensions | 425 × 425 × 310mm |
| Brand | Hikvision |
|---|---|
| Google EDLA | No |
