Hikvision IP R series Pro Mic Ø20mm Diaphragm Mic (DS-QAPMRR-N)
£306.00
£255.00

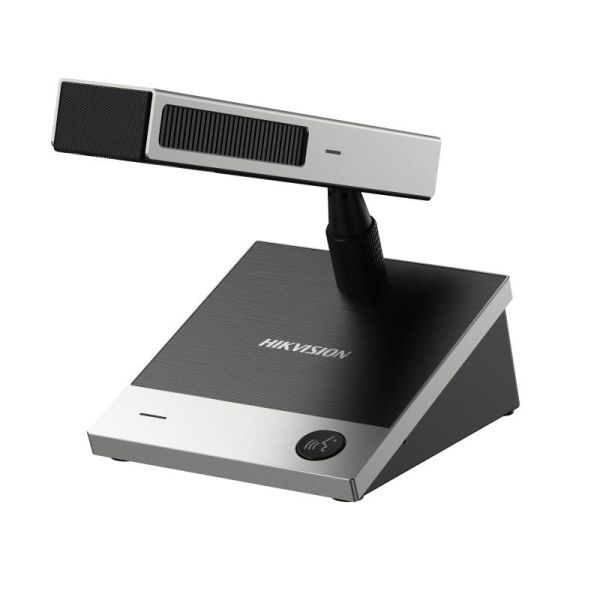

The Hikvision DS-QAPMRR-N is a professional network conference microphone designed for meeting rooms and professional AV installations. It uses PoE for simple network deployment and features five selectable polar patterns, 48 kHz/24-bit audio, built-in DSP processing and AES67 network audio transmission.
IN STOCK
SKU
DS-QAPMRR-N
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-QAPMRR-N is a network rectangular microphone engineered for high-quality conference audio. Its dual-capsule design supports 360° omni-directional, cardioid, hyper-cardioid, super-cardioid and figure-8 pickup patterns, allowing the microphone to be configured for different room layouts and speaking positions.
A built-in DSP provides AFC, AGC, PEQ, Noise Gate and COMP processing, while 48 kHz/24-bit audio provides high-resolution digital transmission. The microphone connects through a 100 Mbps RJ45 interface and supports AES67 together with a wide range of IP and real-time audio protocols.
The microphone is powered via PoE, reducing cabling requirements and simplifying installation. LED indicators provide microphone, speaking, startup, device-identification and fault status information.
Key Features
- Professional network conference microphone
- Dual-capsule microphone design
- 5 selectable polar patterns:
- 360° omni-directional
- Cardioid
- Hyper-cardioid
- Super-cardioid
- Figure-8
- Cardioid selected by default
- 20 Hz–20 kHz frequency response
- 48 kHz sampling rate / 24-bit quantisation
- 67 dB SNR
- 96 dB dynamic range
- 120 dB acoustic overload point
- Built-in AFC, AGC, PEQ, Noise Gate and Compressor
- Microphone abnormality detection
- AES67 network audio
- 100 Mbps RJ45 Ethernet
- PoE powered
- OTAP support
- HTTPS, authentication, audit logging and TLS 1.2/1.3 security
- Metal construction
- Silver finish
- Designed for professional conference environments
| Specification | DS-QAPMRR-N |
|---|---|
| Microphone type | Electret |
| Capsule design | Dual-capsule |
| Polar patterns | 360° omni-directional, cardioid, hyper-cardioid, super-cardioid, figure-8 |
| Default polar pattern | Cardioid |
| Frequency response | 20 Hz–20 kHz |
| Sensitivity | -35 dB |
| SNR | 67 dB |
| Sampling rate | 48 kHz |
| Dynamic range | 96 dB |
| AOP | 120 dB @ 1 kHz, 1% THD |
| THD | <0.1% @ 94 dBSPL, 1 kHz |
| Quantisation | 24-bit |
| Audio algorithms | AFC, AGC, PEQ, Noise Gate, COMP |
| Adjustable polar patterns | 5 |
| Microphone fault detection | Supported |
| Network audio | AES67 |
| Network protocols | AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 |
| API | OTAP |
| Network interface | 1 × RJ45 100 Mbps Ethernet |
| Power | PoE, 36–57 V, 0.06–0.1 A |
| Maximum power consumption | 3.6 W |
| Material | Metal |
| Colour | Silver |
| Dimensions | 226.5 × 120.5 × 116 mm |
| Package dimensions | 515 × 215 × 96 mm |
| Net weight | 1.103 kg |
| Gross/package weight | 1.578 kg |
| Operating temperature | -10°C to 50°C |
| Operating humidity | ≤90%, non-condensing |
| System language | English |
| Reset | Supported |
| Brand | Hikvision |
|---|---|
| Google EDLA | No |
