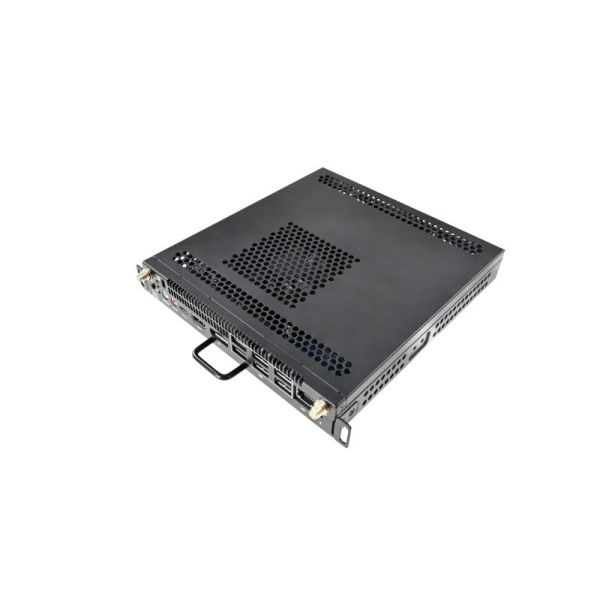

Hikvision OPS Slot in PC Win 11 i7-13th (DS-D5AC13T7-16S5)

The DS-D5AC13T7-16S5 provides a dedicated Windows computing platform for compatible Hikvision WonderHub interactive displays. Its 13th-generation Intel Core i7-13620H processor combines 10 cores and 16 threads with clock speeds up to 4.9GHz, delivering responsive performance for office applications, multimedia, interactive presentations and collaborative environments.

With 16GB of RAM and a 512GB SSD, the OPS module provides ample capacity for Windows applications and local files. Intel UHD Graphics supports 4K output, making the module suitable for high-resolution content displayed through compatible interactive panels.

Connectivity includes Wi-Fi 6, Gigabit Ethernet, Bluetooth 5.2, four USB 3.0 ports, two USB 2.0 ports and USB-C, alongside HDMI 1.4 and DisplayPort 1.2 outputs. TPM 2.0 support provides an additional hardware-based security feature for compatible Windows deployments.

The module installs into compatible Hikvision interactive displays through the OPS interface, providing a convenient way to add a full Windows PC environment without requiring a separate external computer.

Key Features

• 13th Gen Intel Core i7-13620H
• 10 CPU cores / 16 threads
• 2.4GHz base clock
• Up to 4.9GHz turbo frequency
• 16GB RAM (2 × 8GB)
• 512GB storage
• Windows 11 Enterprise
• Intel UHD Graphics for 13th Gen Intel processors
• Supports 4K resolution
• Intel Raptor Lake-H platform
• Wi-Fi 6
• Bluetooth 5.2
• Gigabit Ethernet
• TPM 2.0
• 4 × USB 3.0
• 2 × USB 2.0
• 1 × USB-C
• 1 × HDMI 1.4
• 1 × DisplayPort 1.2
• Audio input and output
• Designed for compatible Hikvision OPS interactive displays
• Compact 195 × 30 × 180mm form factor
