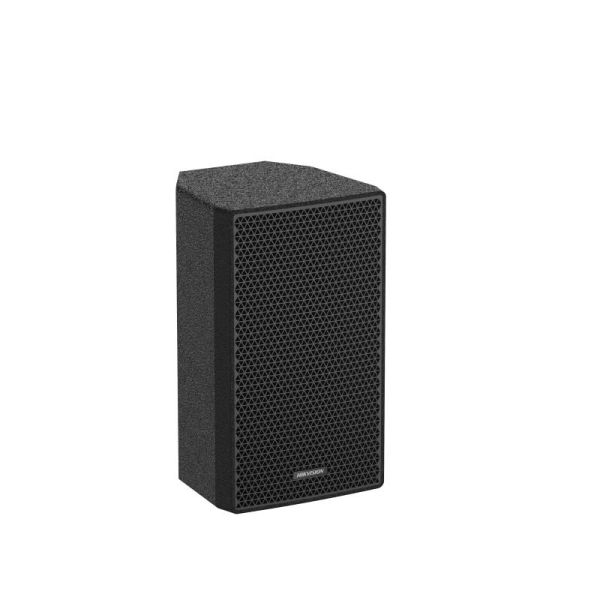

Hikvision Pro Speakers 8" Woofer × 1, 1" Tweeter × 1, 200w (DS-QAPS1R20-8)
£398.40
£332.00
The Hikvision DS-QAPS1R20-8 is a professional 200 W 8-inch full-range loudspeaker featuring an 8-inch woofer and 1-inch tweeter. It delivers 96 dB sensitivity, 118 dB maximum SPL with 126 dB peak SPL, and an 80° × 50° coverage angle, making it suitable for professional PA and sound-reinforcement applications.
Please contact us for availability - Call on 01635 597044 or email [email protected]
SKU
DS-QAPS1R20-8
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-QAPS1R20-8 is designed for professional audio installations requiring powerful full-range reproduction from a compact cabinet. Its 8-inch woofer and 1-inch tweeter provide a broad frequency response, with published specifications of 76 Hz–20 kHz (-10 dB).
With 200 W rated power, 8 Ω impedance and 96 dB sensitivity, the speaker can deliver up to 118 dB maximum acoustic pressure and 126 dB peak SPL. Its 80° horizontal × 50° vertical coverage provides controlled sound distribution for commercial and professional venues.
The cabinet is constructed from 15 mm multi-layer solid-wood plywood and finished in matte black raindrop paint. It supports vertical hanging, horizontal hanging and bottom-support installation, providing flexibility for permanent professional audio systems.
Key Features
- Professional 200 W full-range loudspeaker
- 8-inch woofer
- 1-inch tweeter
- 8 Ω impedance
- 96 dB sensitivity
- 118 dB maximum SPL
- 126 dB peak SPL
- 76 Hz–20 kHz (-10 dB) frequency response
- 80° × 50° coverage
- Multi-layer solid-wood plywood cabinet
- Matte black raindrop finish
- Vertical hanging installation
- Horizontal hanging installation
- Bottom-support installation
- Suitable for professional PA and sound reinforcement
| Specification | DS-QAPS1R20-8 |
|---|---|
| Product type | Full-range professional speaker |
| Rated power | 200 W |
| Impedance | 8 Ω |
| Woofer | 1 × 8" |
| Tweeter | 1 × 1.0" |
| Sensitivity | 96 dB @ 2.83 V / 1 m |
| Maximum acoustic pressure | 118 dB |
| Peak SPL | 126 dB |
| Frequency response (-10 dB) | 76 Hz–20 kHz |
| Coverage angle | 80° H × 50° V |
| Cabinet material | 15 mm multi-layer solid-wood plywood |
| Finish | Matte black raindrop paint |
| Dimensions | 275 × 450 × 270 mm (W × H × D) |
| Net weight | Approx. 12 kg |
| Installation | Vertical hanging / horizontal hanging / bottom support |
| Operating temperature | -30°C to +60°C |
| Operating humidity | Up to 95%, non-condensing |
| Brand | Hikvision |
|---|---|
| Google EDLA | No |
