Hikvision Video Conference series 4MP, Mic (DS-U04)
£28.00
£23.33

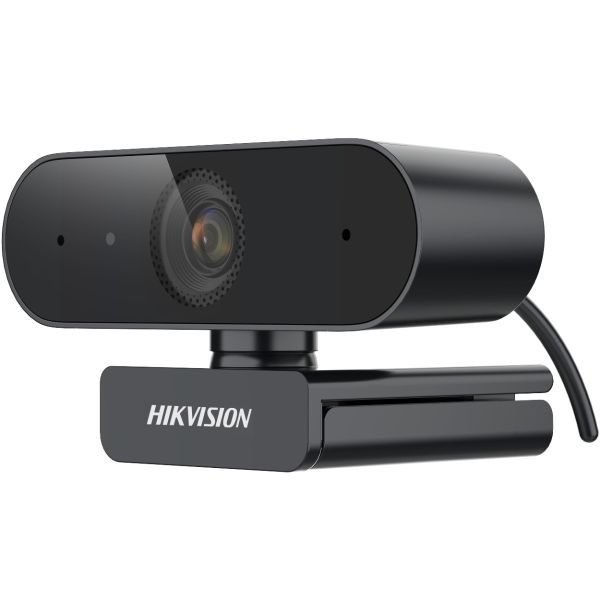

The Hikvision DS-U04 is a compact 4MP USB webcam designed for video conferencing, online meetings, remote learning and everyday desktop communication. It delivers up to 2560 × 1440 resolution, a 3.6mm fixed lens with an 80° horizontal field of view, built-in microphone and plug-and-play USB 2.0 connectivity.
IN STOCK
SKU
DS-U04
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The Hikvision DS-U04 is a 4MP Value Series web camera providing high-quality video at up to 2560 × 1440 @ 25fps. Its 3.6mm fixed-focus lens provides an 80° horizontal, 50° vertical and 88° diagonal field of view, making it suitable for individual users and small meeting environments.
The camera supports 24/7 colour imaging, automatic gain control and flexible physical positioning with 360° pan and ±15° tilt. A built-in microphone provides 16kHz audio capture, while the USB 2.0 Type-A connection provides simple plug-and-play operation without additional drivers.
Key Features
- 4MP CMOS image sensor
- Up to 2560 × 1440 resolution
- MJPEG video up to 1440p @ 25fps
- 3.6mm fixed focal lens
- 80° horizontal FOV
- 360° pan and ±15° tilt adjustment
- 0.1 Lux minimum illumination
- 24/7 colour imaging
- Built-in microphone with 16kHz audio sampling
- USB 2.0 Type-A connectivity
- Plug-and-play operation
- Compatible with Windows, Android, Linux, macOS and Chrome OS
- Compact 89g design
| Specification | DS-U04 |
|---|---|
| Product type | 4MP USB Web Camera |
| Series | Value Series |
| Image sensor | 4MP CMOS |
| Maximum resolution | 2560 × 1440 |
| Signal system | PAL / NTSC |
| Minimum illumination | 0.1 Lux @ F1.2, AGC ON |
| Day/Night | 24/7 Colour Imaging |
| Lens | 3.6mm fixed focal lens |
| Lens mount | M8 |
| Horizontal FOV | 80° |
| Vertical FOV | 50° |
| Diagonal FOV | 88° |
| Object distance | 0.5m to ∞ |
| Pan | 360° |
| Tilt | -15° to +15° |
| Rotation | 0° |
| MJPEG | 2560×1440 @ 25fps; 2048×1536 @ 30/25fps; 1920×1080 @ 30/25fps; 1280×960 @ 30/25fps; 1280×720 @ 30/25fps; 640×480 @ 30/25fps; 640×360 @ 30/25fps |
| YUV | 640×480 @ 25fps; 640×360 @ 25fps |
| Shutter | PAL 1/25–1/50,000s; NTSC 1/30–1/50,000s |
| Microphone | Built-in |
| Audio sampling | 16kHz |
| Video interface | USB 2.0 |
| Cable length | 1.5m |
| Power | DC 5V ±5% via USB |
| Maximum consumption | 1.2W |
| Material | Plastic |
| Operating temperature | -10°C to +45°C |
| Humidity | ≤90%, non-condensing |
| Dimensions | 80.16 × 48.6 × 42.18mm |
| Net weight | Approx. 89g |
| ean | 6931847150709 |
|---|---|
| Brand | Hikvision |
| Google EDLA | No |
