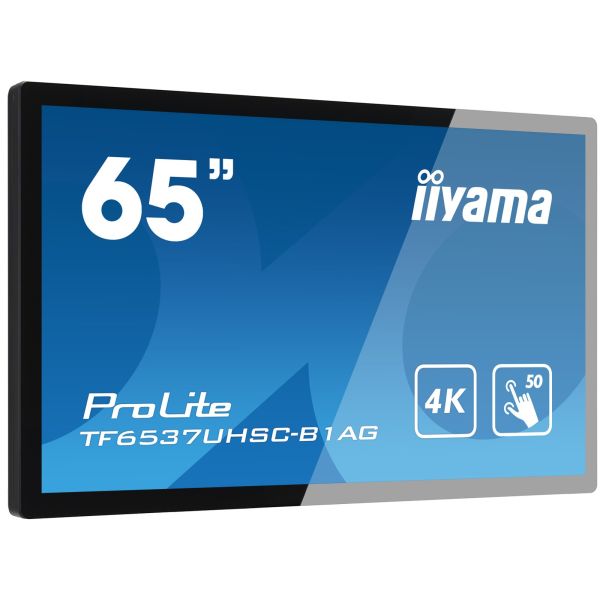

iiyama ProLite 165.1 cm (65') IPS 4K Ultra HD Touchscreen Interactive flat panel Black
£3,191.94
£2,659.95
The iiyama ProLite TF6539UHSC-B1AG is a 65-inch open-frame interactive touchscreen display featuring a 4K UHD (3840×2160) resolution. Equipped with Projective Capacitive (PCAP) technology, it supports up to 50 simultaneous touch points and offers touch-through-glass functionality, making it ideal for kiosks and retail applications. The display utilizes an IPS panel for vibrant colors and wide viewing angles, and is designed for 24/7 operation in landscape, portrait, or face-up orientations.
IN STOCK
SKU
TF6538UHSC-B2AG
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.
We can also offer a full installation service:
- Site Survey
- Equipment recommendation
- Installation
- Testing
- Staff Training
Contact our team now to discuss on live chat, email, phone or book a video call.
The iiyama ProLite TF6539UHSC-B1AG is a 65 inch interactive open frame touchscreen display designed for professional applications such as retail kiosks digital signage corporate collaboration and education. Featuring a 4K UHD resolution of 3840 by 2160 pixels it delivers stunning image clarity with vibrant colors and wide viewing angles thanks to its IPS LED panel technology. The display supports up to 50 simultaneous touch points using projective capacitive touch technology ensuring precise and responsive interaction with fingers stylus or latex gloves. The touchscreen also supports touch through glass up to 6 mm thick allowing integration behind protective glass for added durability.
Built for continuous operation the TF6539UHSC-B1AG is IP54 rated providing dust and water resistance making it suitable for a variety of indoor environments. It offers flexible mounting options including landscape portrait or face up orientations and supports VESA 600 by 400 mm mounting standards. Connectivity options include HDMI DisplayPort VGA USB for touch interface audio in and out and Ethernet enabling easy integration into existing systems.
With a robust metal bezel and 7H hardness front glass this display combines durability with sleek design. Its 24 7 operation and 500 cd per square meter brightness make it ideal for demanding professional use. The display also includes built in speakers and supports palm rejection for smooth touch experience.
Overall the iiyama ProLite TF6539UHSC-B1AG is a versatile reliable and high performance interactive touchscreen display suited for a wide range of commercial and educational applications where high resolution touch interaction is required.
Display Characteristics
-
Design: Edge to edge glass open frame
-
Panel Type: IPS LED with anti glare coating
-
Diagonal Size: 65 inches (165 cm)
-
Native Resolution: 3840 x 2160 (4K UHD) at 60Hz
-
Aspect Ratio: 16 to 9
-
Brightness: 500 cd per square meter
-
Contrast Ratio: 1100 to 1
-
Response Time GTG: 8 ms
-
Viewing Angles: 178 degrees horizontal and vertical
-
Color Support: 16.7 million colors 8 bit
-
Pixel Pitch: 0.372 mm
-
Bezel Width: 36.3 mm sides 37.3 mm top and bottom
-
Glass Thickness: 5 mm
-
Glass Hardness: 7H
-
Light Transmittance: 84 percent
-
Horizontal Sync: 30 to 83 kHz
-
Viewable Area Width x Height: 1430.9 x 806 mm (56.3 x 31.7 inches)
-
Bezel Color and Finish: Black matte
-
VESA Mounting: 600 x 400 mm
-
Mini PC Mount: VESA 100 x 100 mm (Intel NUC)
-
Operating Temperature Range: 0 to 40 degrees Celsius
-
Storage Temperature Range: minus 20 to 60 degrees Celsius
-
MTBF: 50,000 hours excluding backlight
Touch Technology
-
Type: Projective capacitive PCAP
-
Touch Points: Up to 50 HID with supported OS
-
Touch Accuracy: plus or minus 3 mm
-
Touch Methods: Stylus finger latex glove
-
Touch Interface: USB
-
Through Glass Touch: Up to 6 mm
-
Palm Rejection: Yes
-
Supported Operating Systems: Plug and play compatible with Windows and Linux
Connectivity
-
Analog Input: VGA x1 max 1920 by 1200 at 60Hz
-
Digital Inputs: HDMI x2 (one version 2.0 max 3840 by 2160 at 60Hz one version 1.4 max 3840 by 2160 at 30Hz) DisplayPort x1 version 1.2 max 3840 by 2160 at 60Hz
-
Audio Input: Mini jack x1
-
Audio Output: Mini jack x1
-
Speakers: Two times 8 watts
-
Monitor Control Input: RS 232c x1
-
Network: RJ45 LAN x1
-
HDCP Support: Yes
Features
-
Max Non Stop Operating Time: 24 by 7
-
Anti Image Retention: Yes
-
Water and Dust Protection: IP54 front
-
Housing Bezel: Metal
-
Extra Features: Handles touch through glass temperature sensor with fan control
Power Management
-
Power Supply Unit: Internal
-
Power Supply: AC 100 to 240 volts 50 60 Hertz
-
Power Usage Typical: 175 watts
-
Power Usage Standby: 1 watt
-
Power Usage Off Mode: 0.5 watt
Sustainability and Compliance
-
Regulations: CE EAC RoHS support ErP WEEE cULus REACH UKCA
-
Energy Efficiency Class: G
-
REACH SVHC: Above 0.1 percent Lead
-
Weight without box: 56 kg
-
Weight with box: 65 kg
-
Dimensions Width x Height x Depth: 1503.5 x 880.5 x 67 mm
| ean | 4948570118083 |
|---|---|
| Brand | IIyama |
| Education discount | EDUCATION DISCOUNTS |
| Indoor or Outdoor | Indoor |
| Google EDLA | No |
| Screen Size | 65" |
