Product Name

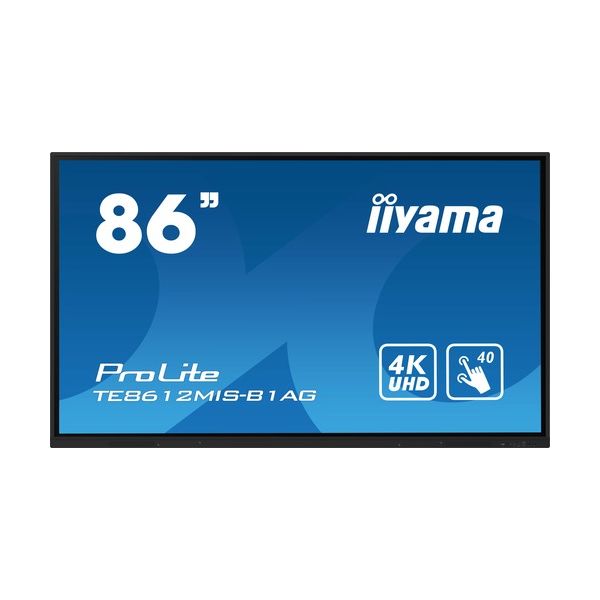

iiyama ProLite TE8612MIS‑B1AG
Display
Screen size 85.6 inches (217.4 cm)
Panel technology IPS with direct LED backlight and anti‑glare coated glass, zero‑air‑gap
Resolution 3840 x 2160 (4K UHD)
Aspect ratio 16 by 9
Brightness 400 cd per square meter (typical)
Static contrast 1200 to 1
Dynamic contrast 4000 to 1
Response time 8 milliseconds (gray‑to‑gray)
Viewing angles 178 degrees horizontal and vertical
Colour depth 1.07 billion colours (8‑bit plus FRC)
Light transmittance 88 to 92 percent
Horizontal sync 30 to 135 kHz
Touch
Technology infrared multi‑touch
Touch points up to 40 simultaneous touches
Orientation and Usage
Supports landscape and portrait
Designed for 24 by 7 continuous operation
Ambient operating temperature range 0 to 40 degrees Celsius
Storage temperature range minus 20 to 60 degrees Celsius
Fanless design
MTBF 50 000 hours (excluding backlight)
Connectivity
HDMI DisplayPort VGA DVI‑D USB for touch control
LAN RJ‑45 RS‑232 control
Audio in and out 35 mm jacks
OPS slot for optional compute module (Intel standard)
Audio
Built‑in speakers (10 watts each)
Power
Internal power supply
AC input range 100 to 240 volts at 50/60 Hz
Typical power consumption 215 watts
Standby power consumption 0.5 watts
Off‑mode consumption 0.3 watts
Mechanical
Orientation landscape
Fanless design
Accessories Included
Power cable USB cable HDMI cable
Remote control with batteries
Four touch pens
Quick start guide and safety guide
Wi‑Fi module mounting bracket for optional NUC or webcam
Certifications and Compliance
CE TÜV‑Bauart EAC RoHS ErP WEEE EPEAT REACH
Complies with relevant environmental and safety standards
