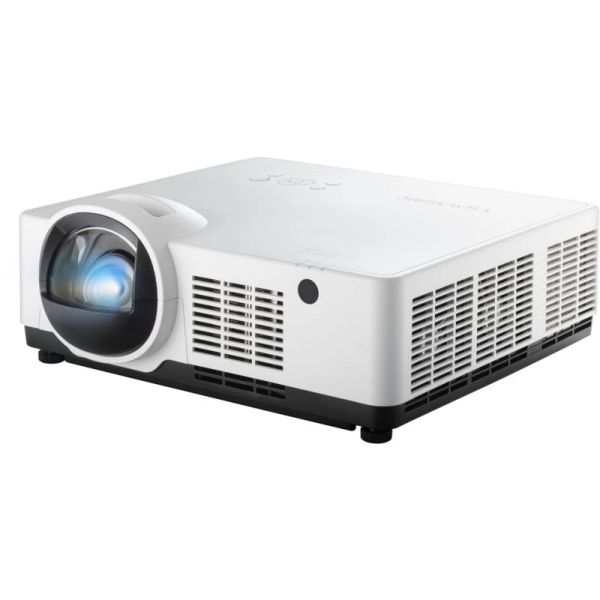

ViewSonic LSC601WU-ST 6000 ANSI Lumen Short Throw Laser Projector WUXGA
£2,196.00
£1,830.00
The ViewSonic LSC601WU-ST is a 6,000 ANSI lumen short throw laser projector with WUXGA (1920×1200) resolution and a 0.44 throw ratio — projecting a 100" image from just 0.95 m. With up to 30,000 hours laser lifespan and 21:9 Microsoft Teams Rooms support, it's built for large venues and modern collaborative spaces.
Please contact us for availability - Call on 01635 597044 or email [email protected]
SKU
LSC601WU-ST
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The ViewSonic LSC601WU-ST is a high-brightness, lamp-free short throw projector designed for demanding commercial, educational, and large venue environments. Using 2nd generation laser phosphor technology, it delivers 6,000 ANSI lumens with a 3,000,000:1 contrast ratio and a lifespan of up to 30,000 hours — dramatically reducing maintenance costs compared to traditional lamp-based projectors.
Its 0.44 short throw ratio produces a 100-inch image from just 0.95 metres, eliminating presenter shadows and glare while enabling flexible room layouts. Support for a 21:9 aspect ratio makes it an ideal front-row solution for Microsoft Teams Rooms, simultaneously displaying the presentation, video feeds, chat, and notifications in a single wide-format view.
- 6,000 ANSI lumens, 3,000,000:1 contrast, WUXGA (1920×1200)
- 0.44 short throw — 100" image from 0.95 m
- Up to 30,000-hour laser lifespan (eco mode)
- 2nd generation laser phosphor technology
- 21:9 aspect ratio support for Microsoft Teams Rooms
- 360° projection and H/V keystone correction for flexible installation
- Dual HDMI, VGA, Ethernet (LAN control), RS-232
- Compatible with Crestron, PJ Link, ATEN, and Extron systems
| Projector | |
|---|---|
| Brightness | 6,000 ANSI lumens |
| Projection technology | 3LCD |
| Native resolution | WUXGA (1920 × 1200) |
| Contrast ratio | 3,000,000:1 |
| Throw ratio | 0.44 |
| Screen size compatibility | 55"–180" (1397–4572 mm) |
| Projection distance | 0.521–1.71 m |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10, 16:9, 21:9 |
| Keystone correction | H/V ±15° |
| 360° projection | Yes |
| Light source | |
| Light source type | Laser phosphor (2nd generation) |
| Laser lifespan (standard) | 20,000 hours |
| Laser lifespan (eco mode) | 30,000 hours |
| Lens | |
| Focal length | 6.39 mm |
| F-number | 1.6 |
| Offset | 98% |
| Connectivity | |
| HDMI ports | 2 |
| VGA (D-Sub) | 1 |
| USB 2.0 Type-B | 1 |
| Ethernet (LAN) | Yes |
| RS-232 | Yes |
| Audio L/R in | Yes |
| Control systems | |
| Compatible with | Crestron, PJ Link, ATEN, Extron |
| Power | |
| Power consumption (typical) | 345 W |
| Standby power | 0.5 W |
| AC input | 100–240 V / 50–60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 405 mm |
| Depth | 404 mm |
| Height | 164 mm |
| Weight | 8.1 kg |
| Packaging data | |
| Package width | 510 mm |
| Package depth | 498 mm |
| Package height | 260 mm |
| Package weight | 10.9 kg |
| ean | 0766907029291 |
|---|---|
| Brand | Viewsonic |
| Education discount | EDUCATION DISCOUNTS |
| Google EDLA | No |
