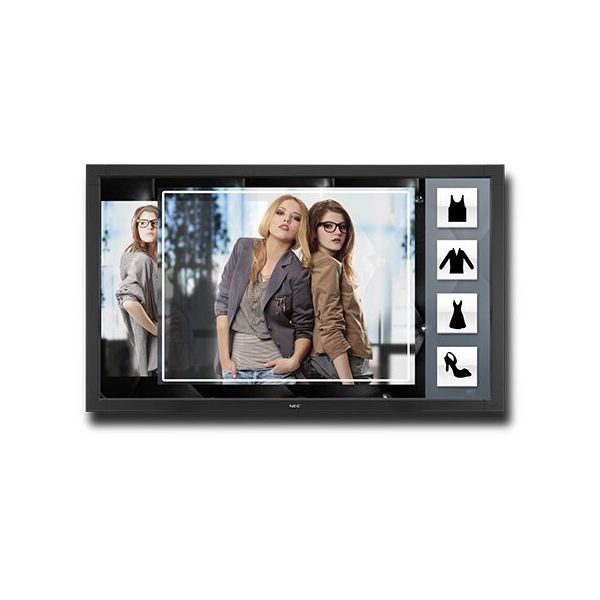

NEC MultiSync V801-TM signage display (80') LCD Full HD Touchscreen Digital signage flat panel
£9,643.44
£8,036.20
NEC MultiSync V801-TM is an 80-inch Full HD touchscreen digital signage display featuring an infrared multi-touch panel, UV²A LCD technology with Edge-LED backlight, and versatile connectivity options. Ideal for interactive signage in retail, education, and corporate environments.
IN STOCK
SKU
V801-TM
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.
We can also offer a full installation service:
- Site Survey
- Equipment recommendation
- Installation
- Testing
- Staff Training
Contact our team now to discuss on live chat, email, phone or book a video call.
The NEC MultiSync V801-TM is a high-performance 80-inch Full HD touchscreen display designed primarily for professional digital signage applications across retail, corporate, education, and public environments. It features an advanced infrared multi-touch panel supporting up to 6 simultaneous touch points, enabling interactive user experiences with great accuracy and responsiveness.
Software and Operating System Compatibility
Unlike some modern digital signage displays that run a native operating system like Android, the V801-TM does not have an embedded Android OS. Instead, it functions as a sophisticated peripheral that can interface with external computing devices. The touch functionality is handled via USB HID (Human Interface Device) protocol, which means it supports touch input when connected to computers or media players running various operating systems.
Supported operating systems for the touch interface include:
-
Windows (versions XP, Vista, 7, 8, and above)
-
Linux
-
macOS
-
Android devices (via USB HID single-touch input)
In practical terms, this means while the display itself does not run Android, it can be connected to an Android device—such as an Android-based media player or PC—and will accept touch input from that device. However, the touch input on Android is limited to single-touch, as opposed to the native multi-touch capabilities provided by the infrared touch panel when connected to Windows or other compatible OS environments.
External Computing and Expandability
The V801-TM supports integration with external computing modules via its OPS (Open Pluggable Specification) STv2 slot. This allows installation of compatible slot-in PCs or media players, which may run Windows or Linux OS, depending on user preference and application requirements.
If you require a signage display with built-in Android OS, NEC offers alternative models such as the V864Q, which features integrated Android 8.0 for native Android applications, content management, and smart signage functionality without needing external PCs.
Display
-
Screen size: 80 inches diagonal
-
Resolution: 1920 x 1080 pixels Full HD
-
Panel type: UV2A LCD with Edge LED backlight
-
Brightness: 460 cd per square meter standard, 174 cd per square meter Eco mode
-
Contrast ratio: 5000 to 1 typical
-
Viewing angle: 176 degrees horizontal and vertical (CR greater than or equal to 10 to 1)
-
Response time: 6 milliseconds gray-to-gray
-
Refresh rate: 60 Hz
Touch Technology
-
Touch type: Infrared multi touch
-
Touch points: Up to 6 simultaneous touch points
-
Touch latency: Approximately 0 to 20 milliseconds
-
Glass: Tempered double sided anti reflection glass with about 90 percent light transmission and 4 percent reflectivity
Connectivity
-
Video inputs: VGA D-sub, Composite, RGBHV, DisplayPort with HDCP, DVI-D with HDCP, HDMI 1.3 with HDCP
-
Video output: DVI-D loop through
-
Audio inputs: 3.5 mm analog jack, HDMI, DisplayPort
-
Audio output: 3.5 mm jack
-
Control interfaces: LAN 100 Mbit with SNMP, RS-232, IR remote
-
Expansion: OPS compatible STv2 slot for integrated slot-in PCs or modules
Audio
-
Integrated stereo speakers: 10 watts plus 10 watts total 20 watts
-
Optional external speakers: 15 watts plus 15 watts
Mechanical
-
Bezel width: Approximately 34.8 millimeters
-
Mounting: VESA 400 by 400 millimeters with M8 mounting holes
-
Orientation: Supports landscape and portrait mode
Environmental
-
Operating temperature: 0 to 35 degrees Celsius
-
Storage temperature: minus 20 to plus 60 degrees Celsius
-
Operating humidity: 20 to 80 percent
-
Storage humidity: 10 to 90 percent
-
Energy features: Ambient light sensor, Eco mode, carbon footprint meter, class A energy rating
Additional Features
-
Schedule management with onboard real time clock
-
TileMatrix support up to 10 by 10 display tiling
-
Picture in picture, input naming, matrix memory
-
DICOM simulation mode
-
Quiet fan control
-
PIN based theft prevention
-
Fast input switching
-
Screen savers
-
Three year limited warranty including backlight
-
Dimensions (WxHxD): 1842.8 mm by 1067.9 mm by 107.3 mm without stand
-
Weight: Approximately 79.9 kilograms without stand
| ean | 0805736054200 |
|---|---|
| Brand | NEC |
| Education discount | EDUCATION DISCOUNTS |
| Indoor or Outdoor | Indoor |
| Google EDLA | No |
