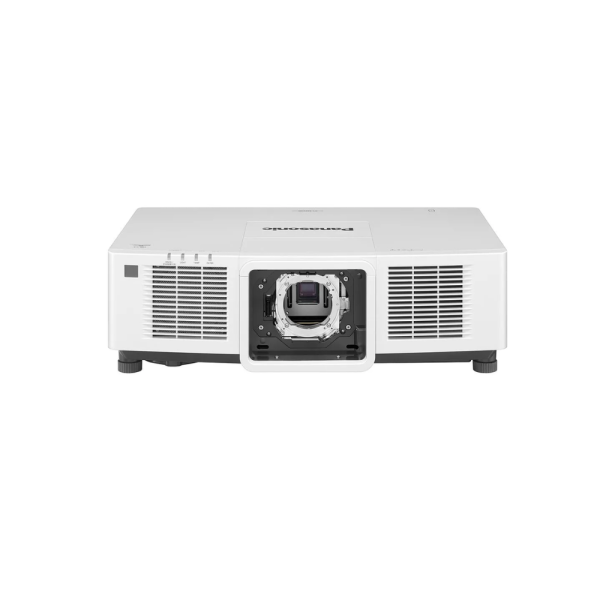

The Panasonic PT-MZ20KLWEJ is a flagship 20,000-lumen WUXGA LCD laser projector designed for large venues and demanding installation environments. It delivers exceptional brightness, long-life laser performance, and outstanding image clarity even in brightly lit spaces, making it ideal for auditoriums, museums, higher education, and corporate event spaces.
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The Panasonic PT-MZ20KLWEJ is part of Panasonic’s high-performance MZ20 series, engineered for large-scale professional installations where brightness, reliability, and operational efficiency are critical. Delivering an ultra-bright 20,000 lumens, it ensures vivid, high-impact visuals that remain clearly visible even in environments with strong ambient lighting such as lecture theatres, exhibition halls, and public venues.
Built around LCD laser projection technology, the PT-MZ20KLWEJ combines high light output with excellent colour reproduction and long-term stability. Its laser light source is designed for up to 20,000 hours of maintenance-free operation, significantly reducing servicing requirements and total cost of ownership in 24/7 or high-usage environments.
The projector also benefits from Panasonic’s advanced optical engineering, including efficient light collection and dynamic contrast processing, ensuring detailed image reproduction with deep blacks and balanced brightness. Despite its extreme output, the MZ20KL is designed to be compact for its class and supports flexible installation options, making it suitable for complex AV integrations in large venues.
Additional features such as multi-laser drive redundancy, failover input switching, and advanced cooling systems ensure continuous operation even in mission-critical environments where downtime is not an option. This makes it a trusted solution for live events, education campuses, museums, and immersive display applications.
| Specification | Details |
|---|---|
| Manufacturer | Panasonic |
| Model | PT-MZ20KLWEJ |
| Projection Technology | 3LCD Laser |
| Brightness | 20,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 × 1200) |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3,000,000:1 |
| Light Source | Laser Diode |
| Light Source Life | Up to 20,000 hours |
| Screen Size | 80" – 600" (lens dependent) |
| Lens System | Interchangeable lens (no lens included) |
| Lens Shift | Vertical ±60%, Horizontal ±20% (lens dependent) |
| Keystone Correction | Vertical ±45°, Horizontal ±40° |
| Inputs | HDMI x2, HDBaseT, SDI, RGB |
| Control | LAN, RS-232, PJLink, Art-Net |
| Installation | 360° flexible installation |
| Cooling | Liquid cooling system |
| Operating Noise | Approx. 42 dB (normal mode) |
| Power Consumption | Up to ~1100 W |
| Weight | Approx. 23 kg |
| Measurement | Size |
|---|---|
| Width | 650 mm |
| Height | 185 mm |
| Depth | 440 mm |
| Weight | ~23 kg |
| ean | 5025232923XXX |
|---|---|
| Brand | Panasonic |
| Education discount | EDUCATION DISCOUNTS |
| Google EDLA | No |
