Clevertouch 86" UX Pro Edge
£8,110.97
£6,759.14
Push Collaboration To The Edge
A flagship interactive display combining premium design with cutting-edge technology for the ultimate collaboration experience.
IN STOCK
SKU
15486UXPROEDGE
4K UHD (3840 x 2160), Android 13, Google EDLA Certified, 40 touch points
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.
We can also offer a full installation service:
- Site Survey
- Equipment recommendation
- Installation
- Testing
- Staff Training
Contact our team now to discuss on live chat, email, phone or book a video call.
Check items to add to the cart or
Clevertouch Edge Achieve More Together
A total transformation for collaboration in the workplace.
Uncompromised writing performance, in-built 90º view top-mounted camera and FlatFrog InGlass™ edge-to-edge technology.
A flagship Interactive display with cutting-edge features.
A complete all round UC meeting room set up in just one panel, one purchase
This cutting-edge solution integrates a top-mounted Sony 4K camera equipped with advanced voice and face tracking technology, ensuring crystal-clear visuals and dynamic engagement. The immersive audio experience is delivered through front-mounted 2x 20W speakers and 2x 10W subwoofers, providing unparalleled clarity and depth to every discussion and is powered by Google EDLA, giving you complete access to all your favourite apps directly from the screen. With Clevertouch Edge you only need to buy one panel to create a complete all round UC meeting room set up
User experience takes centre stage

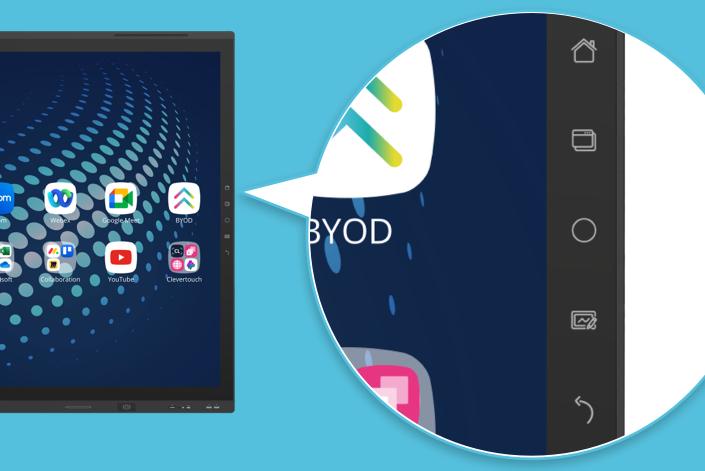

New revolutionary feature – embedded quick launch digital buttons
Streamlining simplicity has never been more efficient, as Clevertouch Edge places the most essential commands at your fingertips. From the indispensable back button to the swift launch of the Lynx Whiteboard and more, these quick buttons redefine user interaction, ensuring a seamless and intuitive experience.

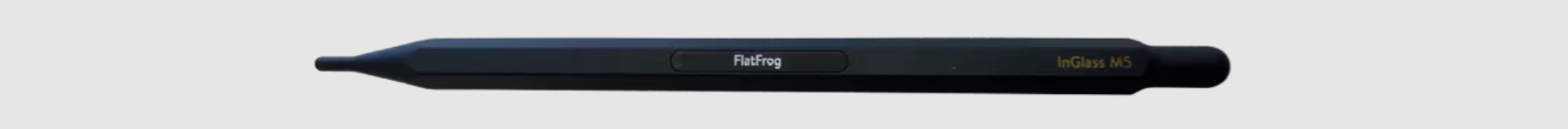

FlatFrog InGlass™ Technology
FlatFrog's InGlassTM provides uncompromised writing performance for digital whiteboarding. With no lag time and real-time precision thanks to cutting-edge optical emitters and detectors. It's like using a traditional whiteboard, but better!
Flush Design
Natural pen-on-paper experience
Palm rejection
Passive pen, no charging
Natural pen-on-paper experience

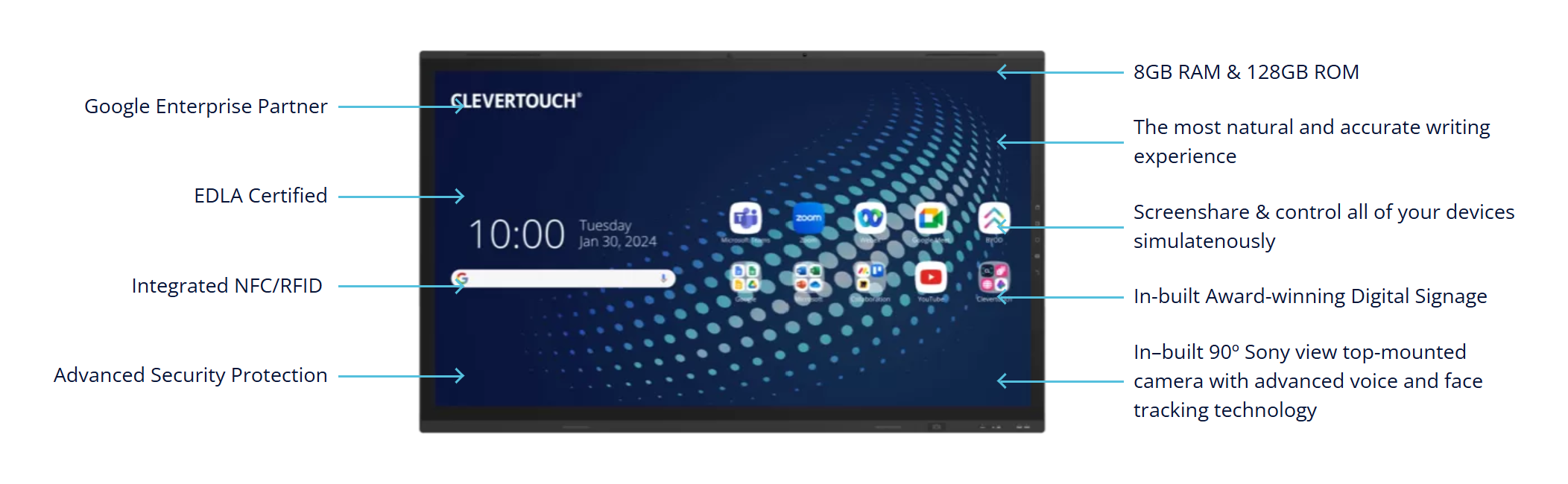

What's New?
Anti Bacterial Glass
Flat Frog InGlass Edge to Edge
Top Mounted Camera
Integrated NFC/RFID
2x 10W Subwoofers &
2x Front Facing Speakers
8GB RAM & 128GB ROM
Android 13
Google Enterprise Partner
Google Enterprise Partner

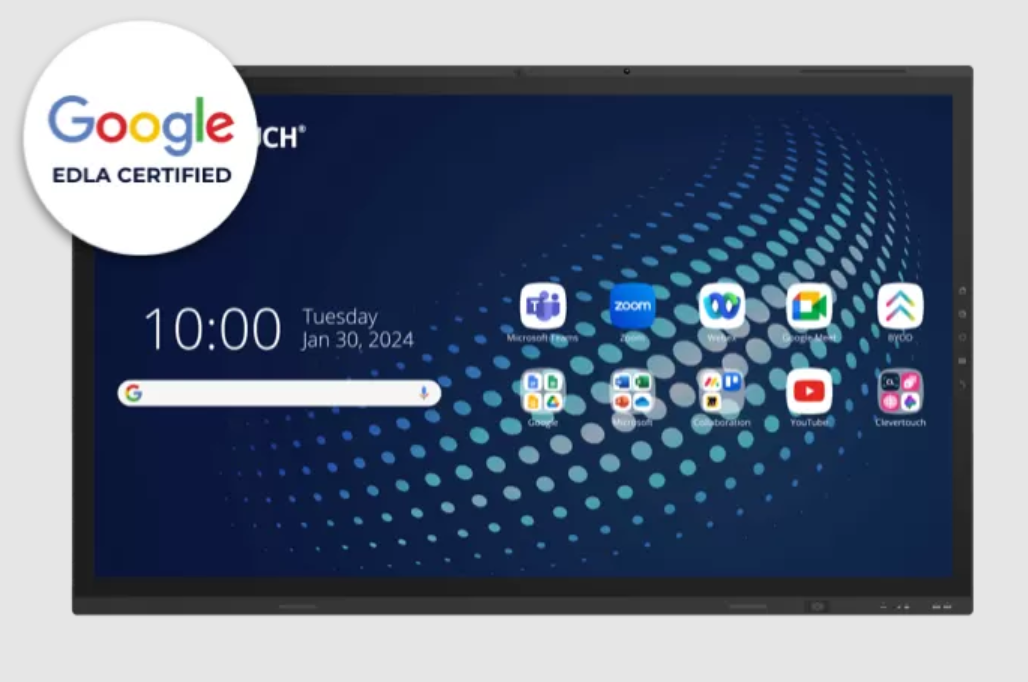

Google EDLA-Certifed
A standout feature of the Clevertouch Edge is its Google EDLA Certification, enabling access to all the apps in Google Play. This includes popular collaboration tools like Microsoft Teams and Google Workspace, allowing users to leverage the full capabilities of these platforms directly from the display. Whether you use Google Drive, Docs, Sheets, Slides, or prefer Microsoft Word and PowerPoint, the Clevertouch Edge supports it all.
Instant screensharing
Any Screen, Any Time
With integrated NFC (Near Field Communication), users can effortlessly load their personal profiles on any compatible Clevertouch display worldwide. Simply swipe a fob, card, or compatible device to access your customised settings and preferences, ensuring a personalised experience every time you use a Clevertouch device.

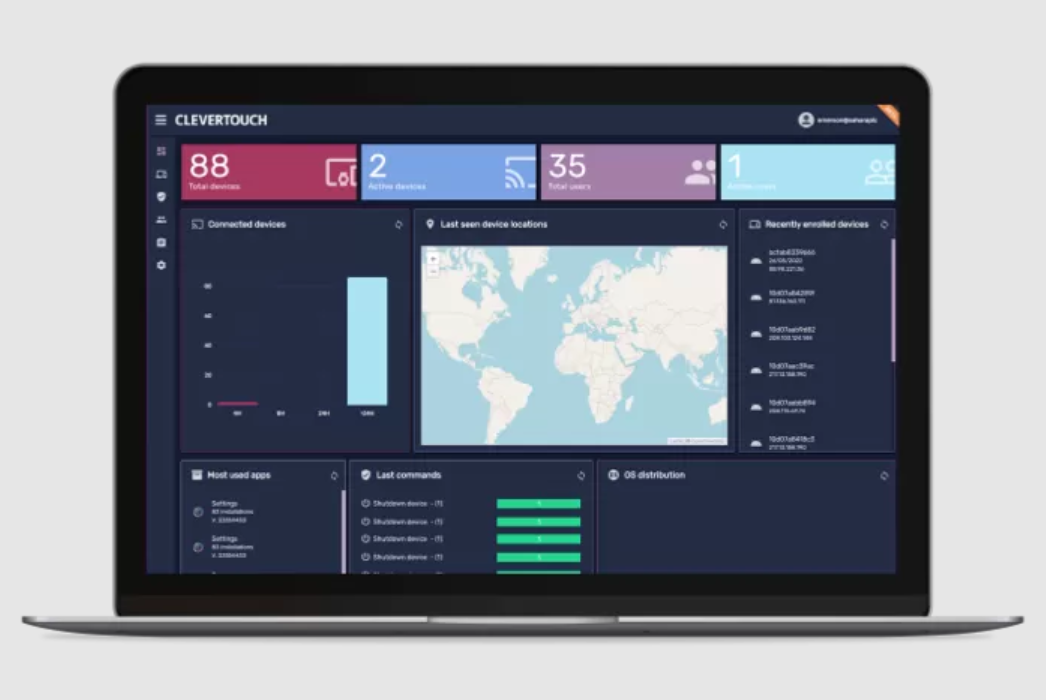

CleverMDM software is included with no subscription fees
Control everything from anywhere
IT departments & administrators can take control without needing to leave their office. Link your entire fleet of UX Pro displays to your Remote Management MDM account so that you can control them from anywhere.
CleverLive software is included with no subscription fees
Award-winning Digital Signage
Sharing information in real time unlocks a new communication channel with more potential than ever. Your display screens become relevant and offer real-time information for your customers or staff members at any time. Dynamic and easy to use, CleverLive is a cloud digital signage platform that enables users to update and control your fleet of screens anywhere from a single portal login.
Upgrade your solution
Combine Clevertouch Edge with an Intel Windows 10 Pro i5 or i7 OPS to enable you to load your existing apps and software from your network and ensure compatibility with your existing infrastructure.
Clevertouch PC Modules
Clevertouch OPS i5
The OPS PC for digital signage, turning your interactive flat panel into a big-screen all-in-one touch PC and powering smarter meeting rooms
Clevertouch PC Modules
Clevertouch OPS i7
Explore the new way of meeting with the flexible, versatile and cost-effective Clevertouch OPS i7. Convert your interactive display into a big-screen all-in-one touch PC for a feature rich experience.
Display
Diagonal Size 65” 4K, 75” 4K, 86” 4K
Screen Type LCD - Direct LED Backlight
Aspect Ratio 16:9
Display Colours 1.07 Billion (10 bit)
Resolution 4K UHD (3840x2160 @60Hz)
Response Time 3ms
Refresh Rate 60Hz
LCD Viewing Angle 178°
Brightness 500 cd/m2
Contrast Ratio 4000:1
Dynamic Contrast Ratio 6000:1
Glass Hardness AG Tempered Glass - Mohs Level 7
Glass Thickness 3mm
Glass Type Low Parallax 1mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface***
Antibacterial Glass Yes
Antibacterial Power Button Yes
Main Board RK3588
Life of Screen 50,000 Hours
NTSC 72%
Interactivity
Writing Technology Flat Frog InGlass IR Technology - M5
NEW Continuous Touch Points 40
Touch Resolution 32768x32768px
Response Time ≤5ms
Touch Accuracy <1mm
Minimum Object Size 2mm
Touch Tool Finger, passive pen, opaque objects, paint brushes
Simultaneous Writing Yes
Ink In Tools Yes - LYNX
Pens Included 2
NEW Pen Type Dual Recognition Stylus | Infinity Stylus
Pen Holder Integrated magnetic pen holders
Pen Tip Diameter 2.8mm/6.3mm
Pen & Touch Differentiation Yes
Pen Identities 2
Palm Rejection Yes
Annotation Over Any Source Yes
Compatibility Windows, Linux, Mac, Android, Chrome
Tracking Rate ≥1m/s
Scan Rate ≥100hz
Gestures & Edge Swipes Windows Supported, OSX with additional Driver
Connectivity
OPS Slot 1 - Intel Spec 80Pin
HDMI In 3
HDMI Out 1
USB-A 2.0 3
USB Touch (type B) 3
NEW USB A 3.0 (faster data transfer) 2 x USB Front Type A 3.0 with faster data transfer 2 x USB Side Type A 3.0 with faster data transfer
NEW USB C (Video, Audio & Touch) 1 x USB Side Type C with video, audio, touch & network 1 x USB Front Type C with video, audio, touch, network, and 100W charging
NEW USB C Out 1 x USB Type C Out with video, audio, touch and network
LAN In (RJ45) 1
LAN Out (RJ45) 1
RS-232 1
Wake-on-Lan Yes
Wireless Adapter 2.0 + WAP Yes
Clevertouch WiFi Module Yes
Bluetooth Yes – 5.2
Displayport In 1
Audio In 1
Optical Out 1
Headphone 1 (3.5mm)
Total touch out ports 3
NFC Reader / Writer Yes - Integrated
Proximity Sensor Yes
Array Mic 8 Array Microphone
Sound pickup angle 180°
Sound pickup distance 8m
Frequency Domain 32kHz
NEW WiFi IEEE 802.11a/b/g/n/ac/ax with 2 × 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
WiFi Generation 6E
WiFi Speed Capable of speeds up to 1Gbps
Camera
Camera 4K Sony integrated camera
Camera Pixel 48 MP
Camera FOV 90°
Camera Focus Distance 5M
Camera Tracking Auto tracking via face detection
ePTZ Yes
Adapts to mainstream cloud meeting apps Yes
Supports 4k Video Yes
Voice Tracking Coming soon
Audio
NEW Dual Front Facing, Bass Enhanced Speakers 2 x 20W Speaker + 2 x 10W Subwoofer
Audio Out Yes
SPDIF / Fibre Yes
Sound Channel 2.2
Line Array Microphone (noise cancelling) 8 Array Microphone
Super Wide Sound Yes
Power
Power Requirements 100-240V ~ 50/60Hz
Power Consumption (Normal) 65” 100W 75” 135W 86” 162W
Power Consumption (Standby) ≤0.5W
Ultra Quiet Fanless Design Yes
Computing
NEW Operating System Android 13
NEW System Version LUX 13
Access to Google Play Store Apps Yes (Certified)
Access to Microsoft Apps Yes (Certified)
Access to Google Cloud Services Yes (Certified)
Access to Video Conferencing Apps (MS Teams, Google Meet, Zoom etc) Yes (Certified)
NEW RAM 8GB
NEW Internal Storage 128GB
CPU Quad Core A76 + Quad Core A55
GPU Mali G610 MC4
Android Resolution 4K
Integrated LUX UI Yes
NEW System Architecture 64-bit
Operating & Storage Environment
Operating Temperature 0˚ to 40˚
Storage Temperature -20˚ to 60˚
Operating Humidity 10% to 90% RH
Storage Humidity 10% to 90% RH
Altitude Below 5000 metres
Clevertouch Edge Built-In Features
BYOM Yes
Handwriting Recognition Yes - LYNX Pro
Unlimited Multi-Floating Resizable Windows Yes
Split Screen Support Yes
Ecosystem of Extensive Apps with Secure and Fast Download Yes
OpenSDK Support Yes
Intelligent O&M Yes
CleverLive™ Embedded Digital Signage Yes
Clevershare™ Mirroring Any Device To The Board Free for the life of the screen (touch back)
Miracast (WiFi Direct) Yes
AirPlay Yes
Chromecast Yes
Integrated Personalised Accounts Profiles Yes
Cloud Account Access OneDrive, Google Drive, Dropbox
CleverLive Rooms™ Embedded Room Booking Yes
Customizable Welcome Page with option to integrate logo, clocks apps and more (CleverLauncher™) Yes
NEW LynxShare™ Yes
NEW LynxCloud™ Yes
Whiteboard Annotation Yes
Email Out Direct From Touchscreen Yes
Scan QR Code For Saving Work Yes
Alerts and Announcements Yes
Over-the-Air Updates Yes
Remote Management Of Touchscreens (MDM) Yes - One year license
Codec Yes
H.264 + H.265 Yes
HD Hardware Encoding and Decoding Yes
Inside your Clevertouch Box
What's In The Box
(1) Clevertouch Edge
(1) 3M HDMI Cable
(1) 3M Length USB cable (A-B)
(1) 1.5M USB C Cable
(1) 3M Regional Power Cable
(1) Remote Control
(2) Batteries for Remote Control
(2) Dual Recognition Stylus
(1) User Guide
(1) Quick Install Guide
(1) Clevertouch WiFi Module
(1) NFC card
(1) CleverCast
(1) Camera Lens Cover
Physical Spec
Panel Dimensions L x H x D
65” 1510 x 937 x 83mm
75” 1731 x 1061 x 85mm
86” 1979 x 1202 x 85mm
Packed Dimensions L x W x D
65” 1654 x 208 x 1026mm
75” 1890 x 225 x 1186mm
86” 2138 x 225 x 1328mm
Thickness of machine and wall mount
65” 113mm (WIB9060H)
75” 115mm (WIB9060H)
86” 115mm (WIB9060H)
Net Weight
65” 40.6kg
75” 54.70kg
86” 68.85kg
Gross Weight
65” 49.5kg
75” 67.00kg
86” 85.30kg
VESA Mount Point
65” 600 x 400mm
75” 800 x 400mm
86” 800 x 600mm
