DAHUA PHMIA135-UH 135" 1080p All-In-One Indoor LED Foldable Display
135" foldable all-in-one indoor LED display with Full HD resolution, 1.5625 mm pixel pitch and 600 nit brightness. Built-in Android, multiple inputs, and integrated speakers make it perfect for quick-deploy corporate signage, presentations or exhibitions.
IN STOCK, ONLY 5 LEFT!

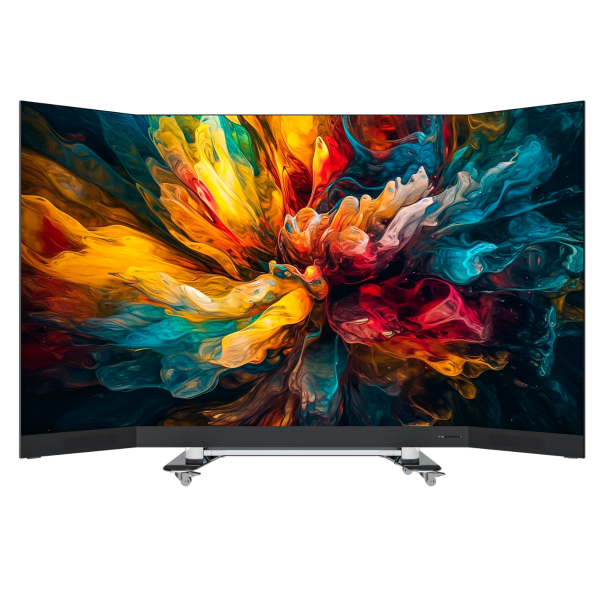

Discover the Dahua DHI-PHMIA135-UH — a 135-inch, all-in-one indoor LED display that combines portability, performance and professional-grade image quality. Thanks to its 1.5625 mm pixel pitch and Full HD (1920×1080) resolution, it produces sharp, vibrant visuals with smooth detail — ideal for corporate events, retail displays, boardrooms, exhibitions and more.

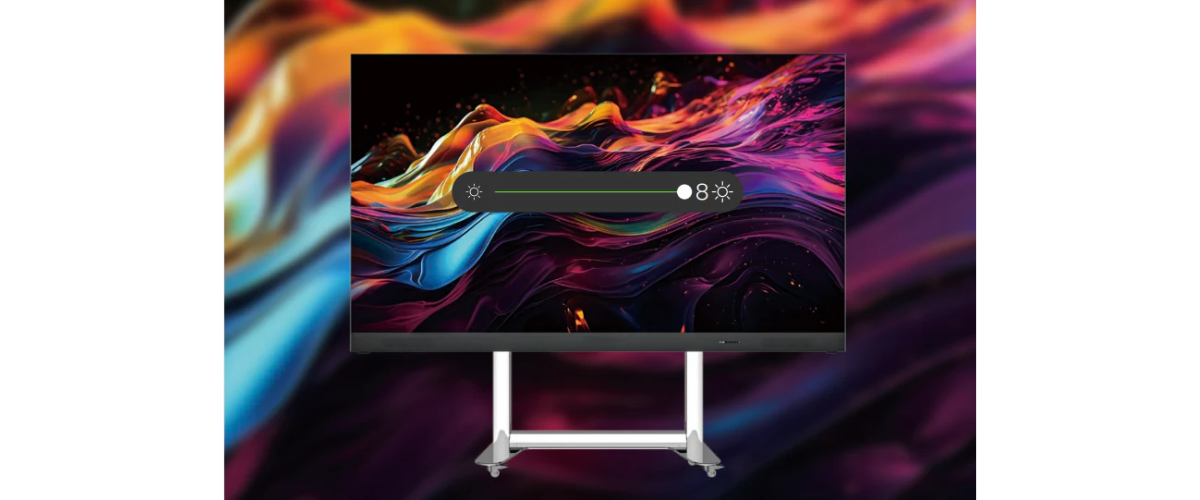

With a maximum brightness of 600 nit, wide 160° viewing angles and a 3840 Hz refresh rate, the display remains bright, clear and flicker-free — even in well-lit indoor environments. The SMD1212 1R1G1B LED configuration delivers accurate colour and consistent brightness across the screen.

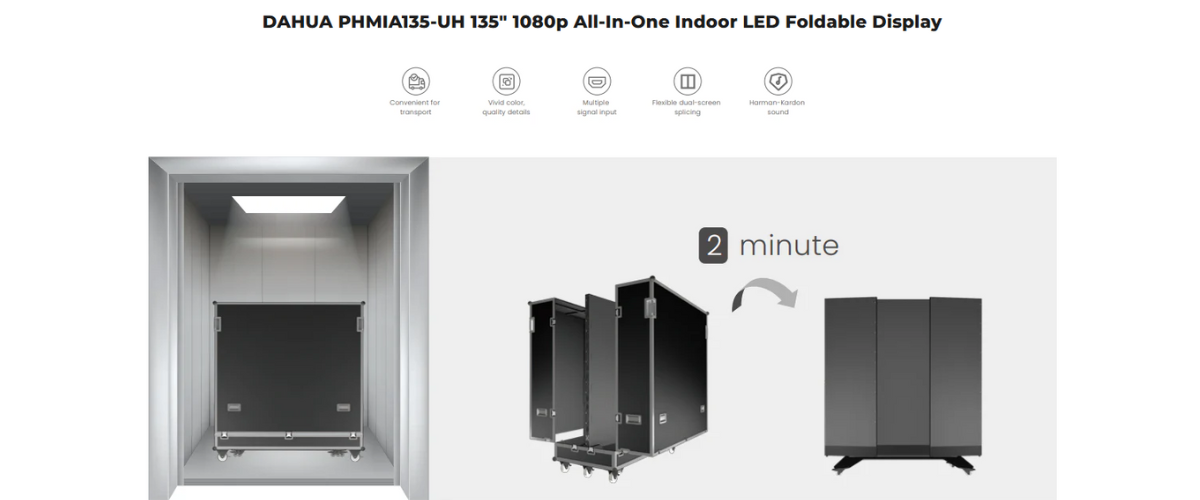

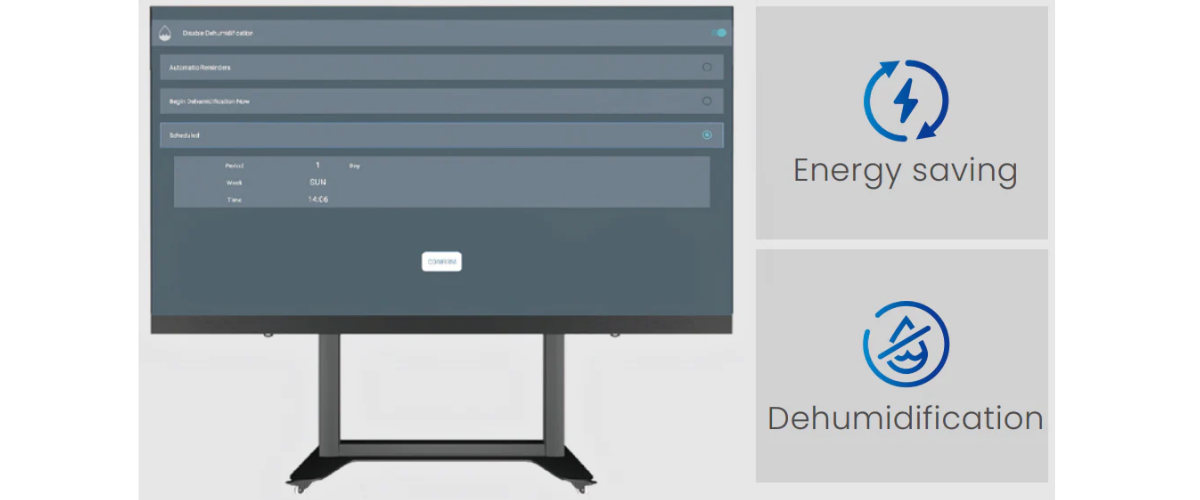

Built for convenience: the screen comes in a foldable, all-in-one format with a sturdy die-cast aluminium cabinet and integrated base. There’s no need for complicated assembly — unfold, power on, and you’re ready. A pre-installed Android OS offers flexible content management; HDMI, USB, LAN, Wi-Fi and audio interfaces give you a wide range of connectivity options in one package. Built-in speakers add audio without the need for external equipment.

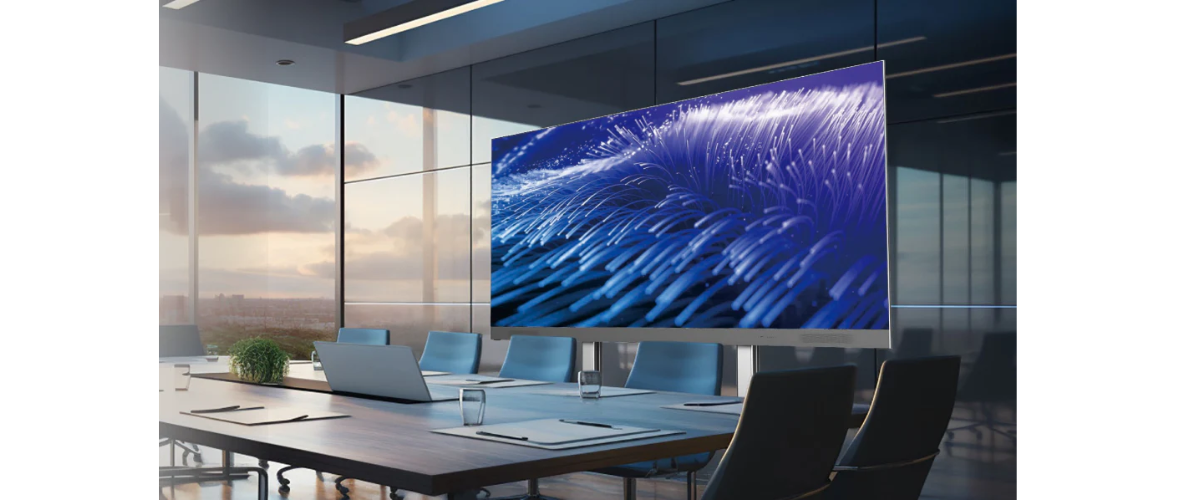

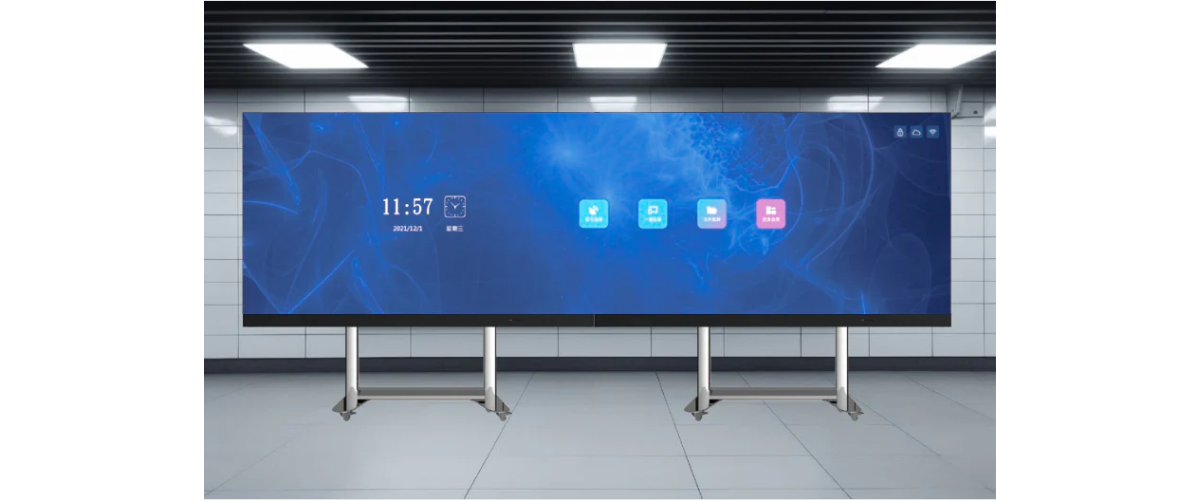

Whether you need a high-impact display for a showroom, a dynamic presentation screen for corporate meetings, or a flexible digital signage solution for exhibitions — the DHI-PHMIA135-UH delivers professional-level performance with plug-and-play simplicity.
















| Parameter | Value |
|---|---|
| Model | DHI-PHMIA135-UH |
| Pixel Pitch | 1.5625mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1212 |
| Brightness (Max) | 600 nit |
| Color Temperature | 3200-12000K (adjustable) |
| Viewing Angle (H/V) | 160°/160° |
| Pixel Density | 409,600 dots/㎡ |
| Module Size (W×H) | 300×168.75mm |
| Display Resolution (W×H) | 1920×1080 |
| Visible Area (H x V) | 3000×1687.5mm |
| Overall Size (W×H×D) | 1804mm×1948mm×770mm (Folded with base) |
| 3010mm×2598mm×770mm (Unfolded with base) | |
| Display Size | 135 inch |
| Cabinet Material | Die-cast aluminum |
| IP Rating | IP30/ IP30 |
| Gray Scale | 14 bits |
| Contrast Ratio | 6000:1 |
| Refresh Rate | 2880~3840 Hz |
| Input Voltage | AC110~220V (+/-10%) |
| Input Power (Max) | 2100W |
| Input Power (Avg) | 630W |

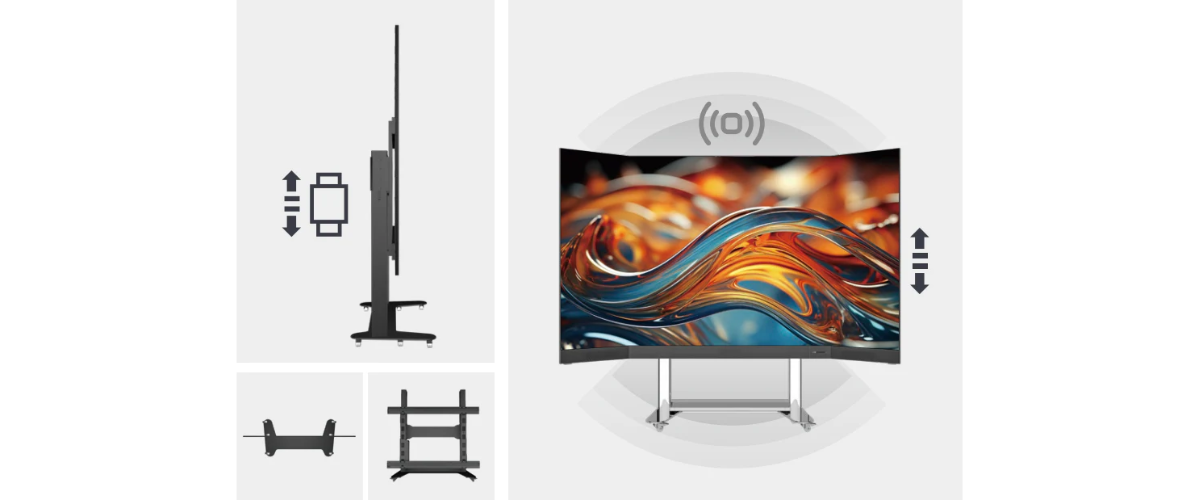

| Installation Mode | Lifting base (standard) |
| Maintenance Mode | Front Maintenance |
| System Memory | 4G |
| Storage | 64G |
| Android System | Android 9.0 |
| Windows System | Windows 11 (optional) |
| Storage Temperature / Humidity | -10℃ to 40℃ / 10% to 90% RH |
| Operating Temperature / Humidity | -40℃ to +60℃ / 10% to 80% RH |
| Weight | 125kg ± 0.5 (Stand not included) |
| 255kg ± 0.5 (Stand included) | |
| Control Interface | IR IN×1, Bluetooth×1, WiFi×2, RJ45×1, RS232×1 |
| Video Interface | HDMI1.4 IN×2, HDMI2.0 IN×2, HDMI2.1 IN×1, HDMI2.0 OUT×1 |
| USB2.0×2, USB3.0×1, Type C IN 4K×1 | |
| Audio Interface | 3.5mm audio output jack Audio OUT×1 |
| Optical audio output interface S/PDIF OUT×1 | |
| Built-in 2x20W audio | |
| Standard Accessories | HDMI cable, wireless screen projector, screen remote |
| control, main cable with aviation plug, lifting remote | |
| control |
| Brand | Dahua |
|---|---|
| Education discount | EDUCATION DISCOUNTS |
| Google EDLA | No |
| Screen Size | 135" |
