Dahua PHSIA1.5-CH LED Flip COB Indoor Fine Pixel Pitch LED

£647.00 £539.17

Dahua PHSIA1.5-CH Flip COB Indoor Fine Pixel Pitch LED

Premium indoor LED panel with 1.5625 mm pixel pitch and Flip-COB technology, offering 600 nit brightness, 160° viewing angles, 16:9 aspect ratio and an ultra-slim, 4 kg cabinet — ideal for high-resolution video walls and professional indoor displays.

IN STOCK

SKU

DHI-PHSIA1.5-CH

Description

The Dahua DHI-PHSIA1.5-CH is a high-end indoor LED display panel, engineered for video walls where visual clarity, color accuracy, and a sleek design are essential. Its fine 1.5625 mm pixel pitch delivering 409,600 dots per square metre ensures crisp, detailed images — even at close viewing distances.

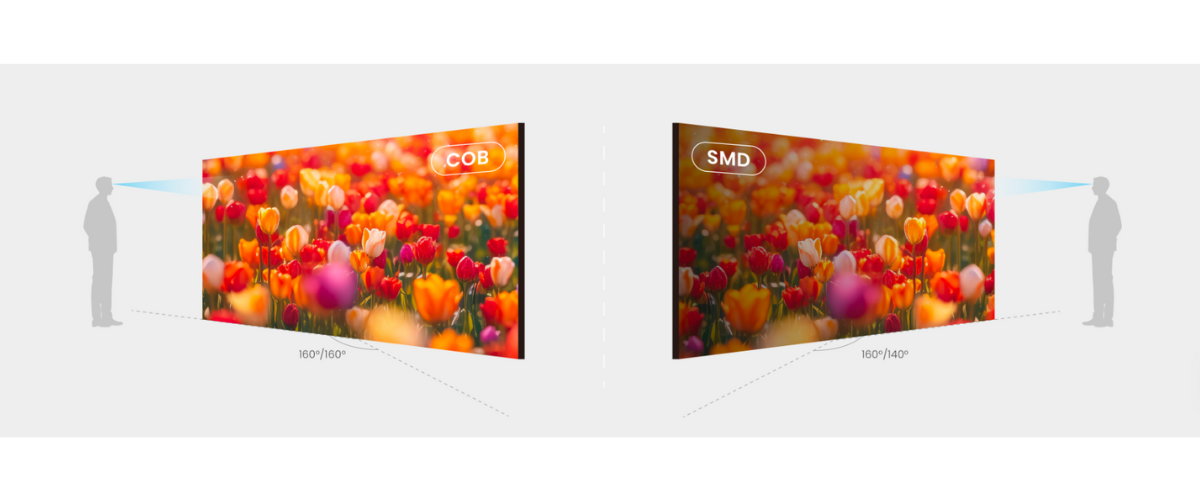

Using advanced Mini Flip-COB (Chip-on-Board) LED technology, the panel achieves bright, uniform lighting with a 600 nit maximum brightness and a consistent color temperature around 9300 K. With a wide 160° horizontal and vertical viewing angle, content remains vivid and distortion-free from almost any vantage point.

The ultra-thin, die-cast aluminium cabinet (only 39.75 mm depth, ~4 kg per panel) allows for seamless splicing and easy installation, with front-access maintenance for quick module servicing. Its 16:9 aspect ratio supports video wall configurations from 2K up to 16K resolution, making it suitable for corporate signage, broadcast environments, retail spaces, control rooms, and other professional indoor display applications.

With a 13-bit grey scale, high refresh rate (3840 Hz), and long LED lifespan (≥ 100,000 hours), DHI-PHSIA1.5-CH balances performance with durability — delivering reliable, high-quality visuals for demanding display installations.
