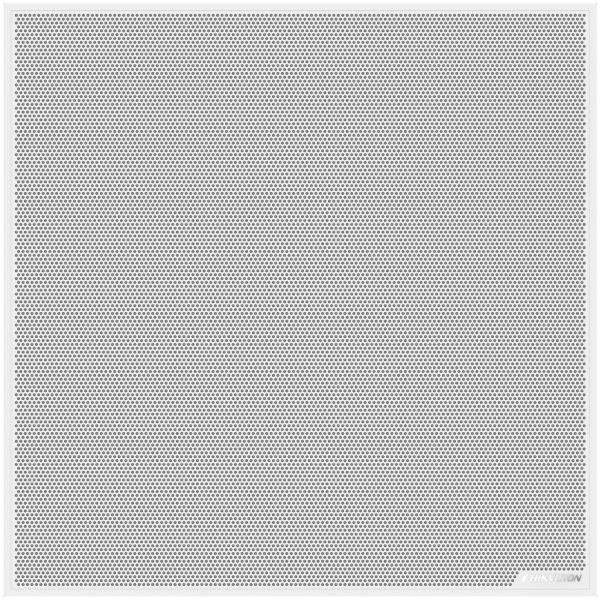

Hikvision 128-mic IP Ceiling Microphone 128-mic IP Ceiling Microphone (DS-QAPMCU128)

The DS-QAPMCU128 uses 128 MEMS microphone elements to provide precise ceiling-mounted audio capture. It offers a 3m pickup radius for sound reinforcement and up to 5m for video conferencing, with eight configurable audio collection areas that can be adjusted and prioritised according to the room layout.

The microphone supports 48kHz/24-bit audio and integrated DSP processing including compression, delay, mixing, automatic level control, parametric EQ, noise gate and beam control. Intelligent noise-reduction algorithms help minimise transient background noise, while the microphone is designed to support local amplification and remote conferencing applications.

For networked AV systems, the DS-QAPMCU128 supports AES67, RTP and a range of IP protocols. Audio can be transmitted over its Gigabit Ethernet connection, with PoE providing both network audio and device power, simplifying installation. It also provides one analogue LINE IN and two LINE OUT connections for integration with conventional audio equipment.

Key features

• 128 × MEMS microphone array
• Network ceiling microphone
• 3m sound-reinforcement pickup radius
• Up to 5m video-conferencing pickup radius
• 8 configurable audio collection areas
• Adjustable area priorities
• 48kHz / 24-bit audio
• Intelligent noise reduction
• Beam control
• AES67 network audio
• AEC, AFC, AGC and EQ support
• COMP, Delay, Mixing, ALC, PEQ and Noise Gate
• 1 × analogue LINE IN
• 2 × analogue LINE OUT
• 1 × Gigabit RJ45 network port
• PoE support
• 32GB eMMC storage
• 2GB DDR4 memory
• Audio Assistant software configuration
• Ceiling installation for 600 × 600mm suspended ceilings
• White metal enclosure
