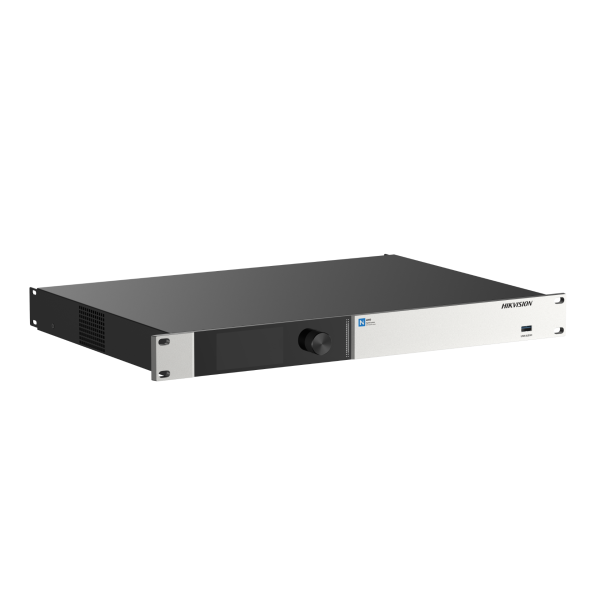

Hikvision IP Audio Processor 8 × 8 Network Audio, 8 × 8 Analog Audio (DS-QAPPR1-N)

The DS-QAPPR1-N provides flexible audio routing and processing for professional AV installations. It supports 8 network audio inputs and 8 network audio outputs, together with 8 + 8 analogue channels, including additional configurable channels.

Its 64-bit DSP platform operates at 48kHz, with 32-bit A/D and 24-bit D/A conversion. Extensive processing includes 12-band parametric EQ, 31-band graphic EQ, high/low-pass filtering, compression, expansion, noise gate, AGC, acoustic echo cancellation, automatic noise suppression, feedback suppression, ducking, matrix mixing, auto mixing, delay and phase inversion.

The processor supports AES67 and Dante-compatible network audio environments, while its USB Type-A port supports audio recording and the USB Type-C interface can operate as a sound card. Master/slave hot backup, remote meetings, speech-to-text, recording/playback and video-tracking applications are also supported.

Key features

• 8×8 network audio matrix processor
• 8 network audio inputs + 8 network audio outputs
• 8 + 8 analogue audio channels, with configurable channels
• AES67 network audio
• Dante-compatible network audio integration
• 48kHz sampling
• 64-bit DSP processor
• 32-bit A/D conversion
• 24-bit D/A conversion
• 12-band PEQ
• 31-band GEQ
• AEC, ANS, AGC and feedback suppression
• AutoMix, matrix mixing and ducking
• Compressor, expander and noise gate
• High-pass/low-pass filtering
• Delay and phase inversion
• USB recording/playback
• USB Type-C sound-card functionality
• Master/slave hot backup
• 8 GPIO control interfaces
• RS-232 and RS-485
• Dual RJ45 network interfaces
• Built-in 3-inch display
• Jog-dial control
• 1U rack-mountable chassis
