Hikvision DS-D5C75RB/B 75' Ultra Series 4K UHD Interactive Touch Screen Display with Integrated AI-Enabled 48MP Camera

Hikvision DS-D5C98RB/B 98' Ultra Series 4K UHD Interactive Touch Screen Display with Integrated AI-Enabled 48MP Camera

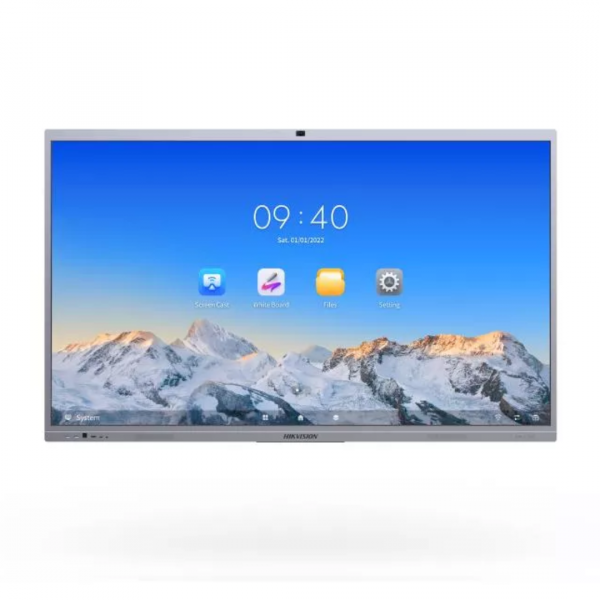

Hikvision DS-D5C86RB/B 86" Interactive Touchscreen with 4K camera

£2,472.00 £2,060.00

The Hikvision DS-D5C86RB/B is an 86-inch 4K Ultra HD interactive display designed for modern classrooms and collaborative environments. Powered by Android 13, it features a responsive infrared touchscreen with up to 50 touch points, facilitating seamless interaction. The display boasts a 400 cd/m² brightness, ensuring clear visibility in various lighting conditions. With built-in Wi-Fi, Bluetooth 5.1, and a comprehensive array of connectivity options, including HDMI, USB, and LAN ports, it supports versatile integration. The integrated 48MP camera and 8-microphone array enhance video conferencing experiences, while the 55W speaker system delivers immersive audio. Ideal for educational institutions and corporate settings, this display transforms traditional spaces into dynamic hubs for learning and collaboration.

IN STOCK

SKU

DS-D5C86RB-B

Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.

We can also offer a full installation service:

Site Survey
Equipment recommendation
Installation
Testing
Staff Training

Contact our team now to discuss on live chat, email, phone or book a video call.

Description

Hikvision DS‑D5C86RB/B 86″ 4K Interactive Display – Transform Your Learning and Collaboration Spaces

The Hikvision DS‑D5C86RB/B is a premium 86-inch 4K Ultra HD interactive display engineered to elevate both educational and corporate environments. Designed for modern classrooms, meeting rooms, and collaborative spaces, it combines high-definition visuals, responsive touch interactivity, and advanced connectivity to create an immersive, engaging experience for users of all ages.

Powered by Android 13, the DS‑D5C86RB/B features a highly responsive infrared touchscreen that supports up to 50 simultaneous touch points, making it ideal for group work, interactive lessons, brainstorming sessions, and collaborative projects. Its anti-glare tempered glass ensures crisp, clear visuals under a wide range of lighting conditions, while the 400 cd/m² brightness delivers vivid imagery that remains readable even in well-lit spaces.

The display is equipped with robust connectivity options, including multiple HDMI and USB ports, LAN, Wi-Fi, and Bluetooth 5.1, providing seamless integration with laptops, tablets, external devices, and networked systems. An integrated 48MP camera paired with an 8-microphone array enables high-quality video conferencing, remote collaboration, and online teaching without the need for additional peripherals. The 55W stereo speaker system ensures clear, immersive audio for presentations, lessons, or conference calls.

Beyond its hardware, the DS‑D5C86RB/B offers dual-system flexibility, allowing optional integration with Windows via an OPS slot-in PC, giving users the ability to run specialized software or corporate applications alongside Android-based apps. Its sleek design, durable metal housing, and VESA-compatible mounting make it suitable for wall-mounting or mobile trolleys, ensuring adaptability to various room layouts and space requirements.

Additional features include annotation tools, whiteboard functionality, and QR code sharing, making collaboration effortless and enhancing engagement in both physical and hybrid learning environments. With energy-efficient performance and WEEE-compliant recycling, the display is built with sustainability in mind, reducing environmental impact while providing long-lasting reliability.

Ideal for schools, universities, corporate offices, and training centers, the Hikvision DS‑D5C86RB/B 86″ interactive display transforms traditional spaces into dynamic, interactive hubs where learning, collaboration, and communication are seamless, efficient, and inspiring.

Technical Specifications

Product Model

DS-D5C86RB/B

Display

Screen Size 86 inch

Backlight DLED

Pixel Pitch 0.1645（H）× 0.4935（V）mm

Resolution 3840 × 2160 @60 Hz

Brightness 400 cd/m² （Typ.）

Color Depth 10 bit

Display Color 1.07 G

Response Time 5 ms

Panel Type VA

Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)

Color Gamut 72% NTSC (CIE1931) (Typ.)

Refresh Rate 60 Hz

Viewing Angle 178° (H)/178° (V)

Aspect Ratio 16:9

Surface Hardness 9H (Pencil) 7 (Mohs)

Surface Glass Anti-Glare Glass

Surface Haze 25% Haze

Glass Bonding Method Zero Lamination

Display Area 1895.04mm x 1065.96mm

Working Duration 7 × 16 H

Transmittance 88% ± 3

Lifespan 50,000 hours

Touch

Type Infrared Touch Screen

Touch Point Up to 50-point multi-touch

Touch Response Time ≤ 2 ms

Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)

Touch Precision ± 0.5 mm (≥ 90% touching area)

Touch Resolution 32767 × 32767

Built-in System

Operation System Android 13.0

Memory 8 GB

Built-in Storage 128 GB

Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）

GPU Mali-G610 MC4

HDCP Version 2.3

Camera

Pixel Pixel 48MP for Photos & 8 MP for Video

Camera Function Support intelligent switching between Android system, OPS, and PC.

Field Angle 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)

Distortion ≤2.5%

Camera Resolution Ratio Up to 4K

Microphone

Specification Omni-directional 8-array layout

Mic Function Echo reduction and smart noise-cancellation

Voice Distance 12 m

Sampling Rate 32 K

Mic Depth 16 bit

Internal Function

Loudspeaker Built-in 2 × 20 W+25W loudspeaker;

Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1

NFC Support screen mirroring by Android phones

Light Sensor Yes

Image Processing Technology Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .

Audio Processing Technology Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface

Video & Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1

Video & audio output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1

Control interface TOUCH-USB 3.0 × 3, RS232 × 1

Network Interface LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

Data Transmission Interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power

Power Supply 100 to 240 VAC, 50/60 Hz

Standby Consumption ≤ 0.5 W

Average Consumption < 205W

General

VESA 800 mm × 600 mm （4 × M8-25 mm）

Product dimensions 1960.5 mm × 1173.7 mm × 82.5 mm

Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.

Package Dimensions (W × H × D) 2197 mm × 284 mm × 1376mm

Net Weight 65.13 kg

Gross Weight 82.6 kg

Working Environment

Working Temperature 0 °C to 40 °C (32 °F to 104°F)

Working Humidity 10%~90% RH

Dimensions
