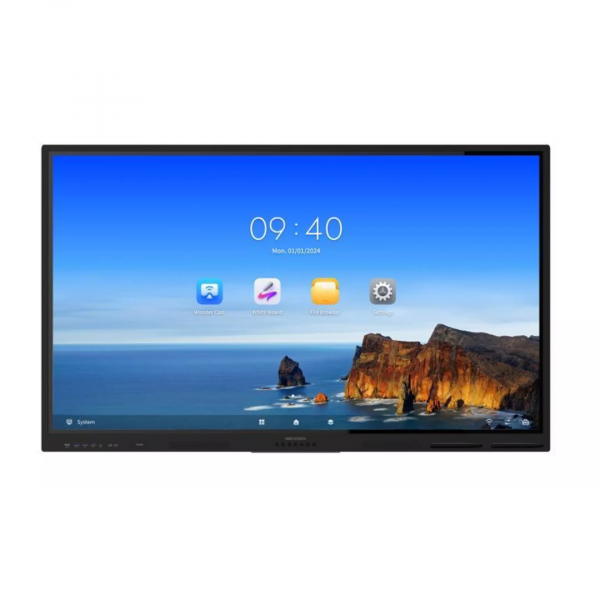

Hikvision DS-D5B86RB/EL 86-inch 4K Interactive Display

£1,650.00 £1,375.00

The Hikvision DS-D5B86RB/EL is an 86-inch 4K UHD interactive flat panel display designed for dynamic collaboration in educational and professional settings. Featuring a high-resolution 3840×2160 display, it offers an ultra-responsive 40-point touch experience with less than 5ms response time. The display is equipped with Android 13.0, 8GB RAM, and 64GB storage, supporting dual operating systems for versatile use. Its anti-glare and anti-blocking surface ensures smooth interaction, while compatibility with OPS/OPS-C devices allows for seamless system switching

IN STOCK

SKU

DS-D5B86RB/EL

Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available.

We can also offer a full installation service:

Site Survey
Equipment recommendation
Installation
Testing
Staff Training

Contact our team now to discuss on live chat, email, phone or book a video call.

Description

Hikvision DS-D5B86RB/EL – 86-Inch 4K UHD Interactive Display for Education and Collaboration

The Hikvision DS-D5B86RB/EL is a premium 86-inch interactive flat panel display engineered to deliver exceptional performance and seamless collaboration in classrooms, meeting rooms, and professional environments. Featuring a 4K UHD resolution (3840×2160) and a 40-point ultra-responsive touch interface with less than 5ms response time, it provides highly accurate, smooth, and natural interaction for multi-user engagement.

Powered by Android 13.0, with 8GB RAM and 64GB internal storage, the DS-D5B86RB/EL supports powerful applications, multi-tasking, and rich media content. The display also offers dual operating system compatibility, allowing integration with OPS and OPS-C computing modules for enhanced flexibility and system switching according to specific user needs.

Designed with anti-glare and anti-blocking surface technology, this interactive display ensures optimal visibility under varying lighting conditions, reducing eye strain and improving usability for both students and professionals. Its advanced connectivity options, including HDMI, USB, and network interfaces, enable effortless integration with peripheral devices and existing IT infrastructure.

The DS-D5B86RB/EL combines high durability and professional-grade build quality with features such as edge-to-edge tempered glass, IP protection for front panels, and 24/7 operational capability. This makes it ideal for intensive use in educational institutions, corporate offices, training centers, and collaborative workspaces.

Whether for interactive lessons, corporate presentations, video conferencing, or multimedia content delivery, the Hikvision DS-D5B86RB/EL delivers exceptional clarity, reliable performance, and intuitive operation, making it a versatile and powerful solution for modern digital collaboration environments.

Technical Specifications

Product Model DS-D5B86RB/EL

Display

Screen Size 86 inch

Backlight DLED

Pixel Pitch 0.165 (H) × 0.494 (V) mm

Resolution 3840 × 2160 @60 Hz

Brightness 400 cd/m² (Typ.)

Color Depth 10 bit

Display Color 1.07G

Response Time 5ms

Panel Type VA

Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)

Color Gamut 72% NTSC (CIE1931) (Typ.)

Refresh Rate 60 Hz

Viewing Angle 178°(H)/178°(V)

Aspect Ratio 16:9

Surface Haze 25% Haze

Display Area 1895.04 mm × 1065.96 mm

Working Duration 7 × 16H

Surface Hardness 9H (Pencil) 7 (Mohs)

Surface Glass 3.2 mm Anti-Glare Glass

Transmittance 88% ± 3

Lifespan 50,000 hours

Touch

Type Infrared Touch Screen

Touch Point 40-point multi-touch

Touch Response Time＜ 5 ms

Minimum Touch Object ≥ 2 mm (≥ 90% touching area)

Touch Precision ± 1 mm (≥ 90% touching area)

Touch Resolution 32767 × 32767

Built-in System

Operation System Android 13.0

Memory 8 GB

Built-in Storage 64 GB

CPU Cortex-A55 × 4 (1.92GHz)

HDCP Version Support 1.4/2.2/2.3

GPU Mali-G52 MP2 (2EE)

Internal Function

Loudspeaker Built-in 2 × 20 W

Speaker Frequency 200-20Khz

Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2

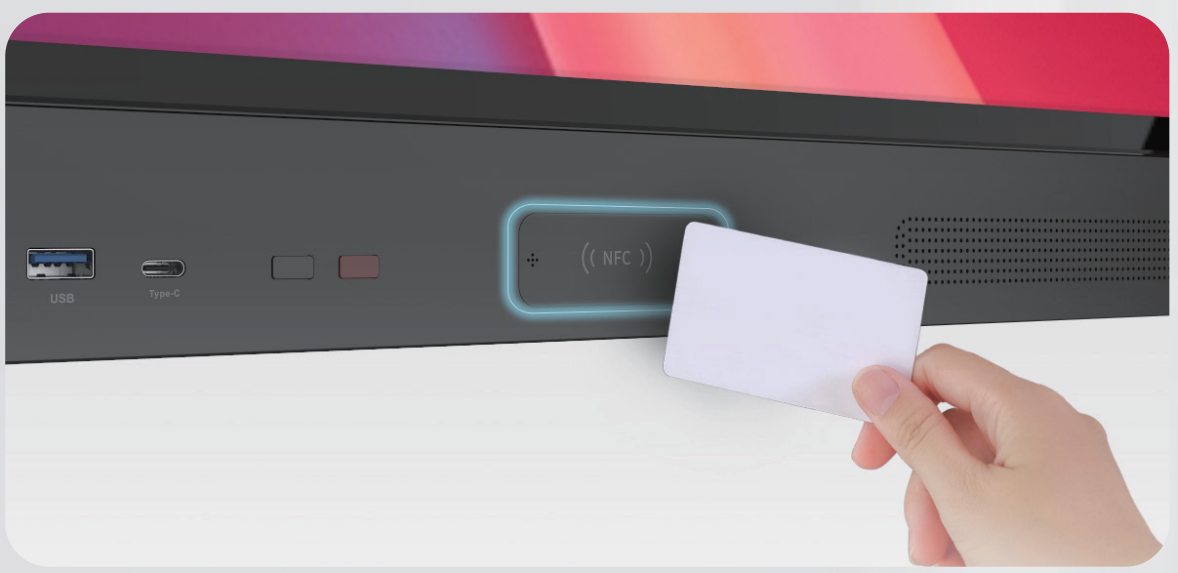

NFC Support card reader

Light Sensor Yes

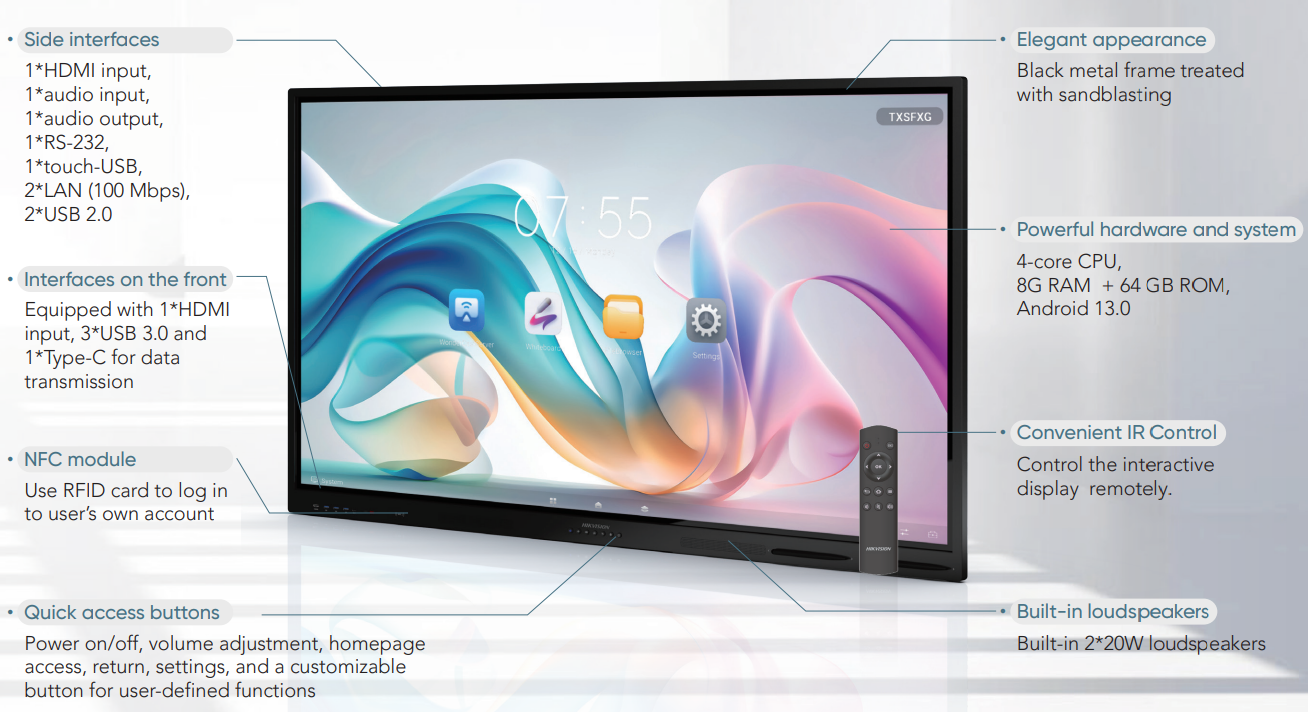

Interface

Video & Audio Input HDMI In (HDMI 2.0) × 2, Audio In × 1

Video & Audio Output Audio Out × 1

Control Interface TOUCH-USB 2.0 × 1, RS232 × 1

Network Interface LAN (100 Mbps) × 2 WIFI AP&Station，2.4G/5G WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

Data Transmission Interface USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)

Power

Power Supply 100 to 240 VAC, 50/60 Hz

Standby Consumption ≤ 0.5 W

Max. Consumption 326 W

Average Consumption 268 W

General

Product Dimensions 1960.44 mm × 1164.69 mm × 82.5 mm

Package Dimensions (W × H × D) 2157 mm × 1345 mm × 223 mm

VESA 800 mm × 600 mm (4 × M8-25 mm)

Net Weight 59.71 kg

Gross Weight 79.0 kg
