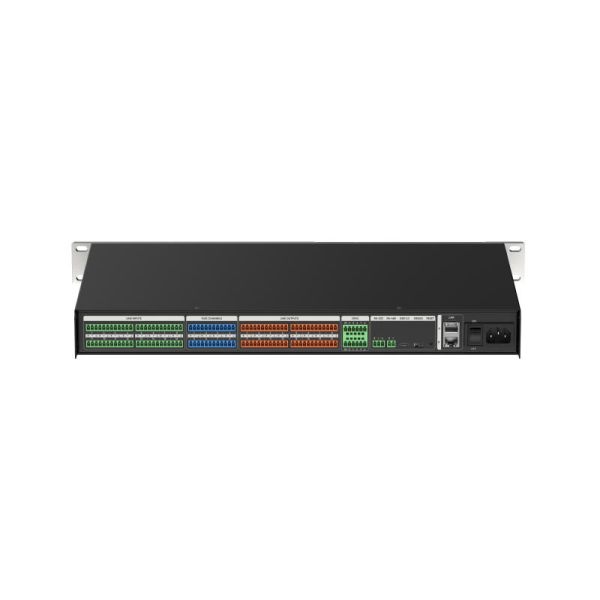

Hikvision IP Audio Processor 16 × 16 Network Audio, 16 × 16 Analog Audio (DS-QAPPR2-N)
£1,358.40
£1,132.00
The Hikvision DS-QAPPR2-N is a professional 16×16 network audio processor designed for conferencing, meeting rooms, distributed AV and professional audio installations. It provides 16 network audio inputs and outputs, up to 16×16 analogue audio channels plus 8 configurable channels, advanced 64-bit DSP processing, AES67 networking, USB audio functions and extensive control interfaces.
Please contact us for availability - Call on 01635 597044 or email [email protected]
SKU
DS-QAPPR2-N
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-QAPPR2-N provides a powerful DSP platform for complex professional audio systems. It supports 16 network audio input channels and 16 network audio output channels, together with 16 analogue input and 16 analogue output channels, plus an additional eight flexible custom channels. Hikvision also specifies compatibility with Dante-based network audio ecosystems through its AES67 network transmission solution.
Its 64-bit DSP architecture operates at 48kHz, with 32-bit A/D and 24-bit D/A conversion. Processing functions include AEC, ANS, AGC, feedback suppression, AutoMix, priority ducking, matrix mixing, 12-band PEQ, 31-band GEQ, compression, expansion, noise gate, delay, filtering and phase inversion.
The unit is equipped with two RJ45 interfaces, RS-232, RS-485, eight GPIO interfaces and two USB interfaces. A USB Type-A interface supports audio recording, while USB Type-C provides sound-card functionality. A built-in 3-inch display and jog dial provide local access to device information and configuration.
Key features
- 16×16 network audio processor
- 16 network audio inputs + 16 network audio outputs
- 16×16 analogue audio channels
- 8 additional flexible/custom channels
- AES67 network audio
- Compatible with Dante network audio environments
- 64-bit DSP processor
- 48kHz sampling / 24-bit D/A / 32-bit A/D
- 12-band parametric EQ
- 31-band graphic EQ
- Acoustic echo cancellation (AEC)
- Automatic noise suppression (ANS)
- Automatic gain control (AGC)
- Feedback/howling suppression
- AutoMix and matrix mixing
- Priority ducking
- Compressor and expander
- Noise gate
- HPF/LPF
- Delay and phase inversion
- 48V phantom power
- USB recording/playback and USB sound-card functionality
- 8 GPIO control interfaces
- RS-232 and RS-485
- Dual RJ45 network interfaces
- 3-inch display with jog-dial control
- Master/slave hot backup
- 1U rack/cabinet installation
- Secure Boot and comprehensive network security
| Specification | Details |
|---|---|
| Model | DS-QAPPR2-N |
| Product type | Network audio processor |
| Network audio input | 16 channels |
| Network audio output | 16 channels |
| Analogue input | 16 channels + 8 customizable channels |
| Analogue output | 16 channels + 8 customizable channels |
| Sampling frequency | 48kHz |
| DSP processor | 64-bit |
| A/D conversion | 32-bit |
| D/A conversion | 24-bit |
| Rated power | 75W |
| Frequency response | 20Hz–20kHz ±0.3dB |
| Phantom power | 48V |
| Maximum output level | 21dBu |
| System delay | 3ms |
| THD | <0.0015% @ 10dBu input |
| Dynamic range | 110dB @ 21dBu / +10dBu / 0dBu; 103dB @ -10dBu |
| SNR | 110dB @ 21dBu / +10dBu / 0dBu; 103dB @ -10dBu |
| Channel separation | 108dB @ 1kHz |
| Input range | 21dBu, +10dBu, -10dBu, -30dBu |
| A/D dynamic range | 110dB |
| D/A dynamic range | 112dB |
| Input-to-output dynamic range | 112dB @ 21dBu; 108dB @ 2.2dBu |
| CMRR | >70dB |
| Input processing | Volume, delay, HPF, LPF, PEQ, compressor, noise gate, expander, AGC, howling suppression |
| Output processing | Volume, delay, HPF, LPF, PEQ, compressor, expander, 31-band GEQ, frequency divider, phase inversion |
| Audio processing | AutoMix, AEC, ANS, priority ducking, matrix mixing |
| Network protocols | AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 |
| API protocol | OTAP |
| Network security | Password protection, HTTPS encryption, HTTP/HTTPS authentication, security audit log, TLS 1.2/1.3 |
| Network interfaces | 2 × RJ45 |
| Serial interfaces | 1 × RS-232, 1 × RS-485 |
| GPIO | 8 control interfaces |
| USB | 2 × USB |
| USB Type-A | Audio recording |
| USB Type-C | Sound-card function |
| Local control | Jog dial |
| Display | 3-inch display |
| Data security | Secure Boot |
| Chassis | 1U |
| Power supply | 100–240VAC, 50/60Hz |
| Dimensions | 482.87 × 50.1 × 297mm |
| Package dimensions | 570 × 138 × 410mm |
| Net weight | 4.1kg |
| Gross weight | 5.5kg |
| Operating temperature | -10°C to +50°C |
| Humidity | ≤90%, non-condensing |
| Installation | Cabinet/rack installation |
| Brand | Hikvision |
|---|---|
| Google EDLA | No |
