Hikvision - DS-D4215FI-CWF/III

Hikvision - DS-D4215FI-CWF/III

Hikvision LED Poster Display DS-D4515CH-1FQF 2nd Gen

£3,448.00 £2,873.33

Hikvision LED Poster Display DS-D4515CH-1FQF  - 2nd Gen









IN STOCK IN STOCK
SKU
DS-D4515CH-1FQF

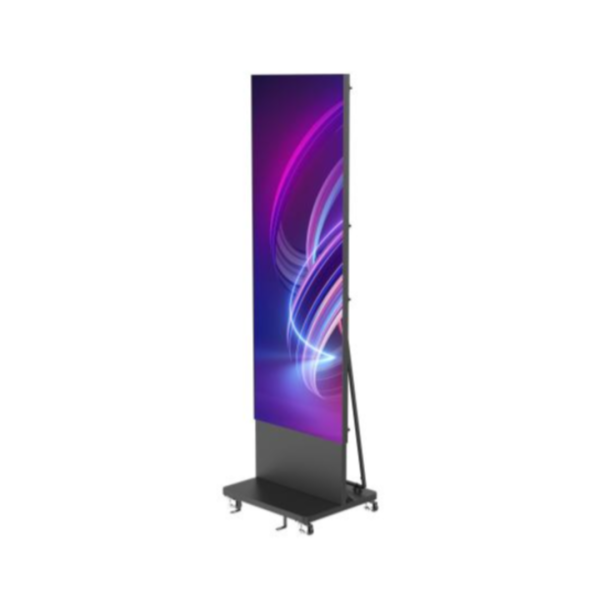

Hikvision LED Poster Display DS-D4515CH-1FQF 2nd Gen



  • The cabinet features a highly integrated, lightweight, and streamlined design with a magnetic butterfly-frame, enabling fast horizontal splicing and flexible combinations.
  • Incorporates proprietary lossless image processing and ultra-low grayscale control technologies, delivering delicate, smooth visuals and outstanding dynamic color performance.
  • Supports multiple remote content management methods, including local control, USB drive input, and PC-based operation.
  • Fully self-developed display control system ensures end-to-end stability, security, and controllability. System modules can be easily maintained or replaced, with front-access LED modules supporting single-pixel repairs.
  • Allows for multi-unit cascading display with a built-in sending card, eliminating the need for external control devices.
  • Multiple installation options available: built-in angled support bracket, mobile stand, wall mount
  • Optimized for close-range viewing scenarios with HOB LED panel protection, offering enhanced resistance to moisture, impact, and environmental stress.
  • Supports multiple configuration methods including local remote control, software, and web interface, offering more convenient operation.
  • Product Model
  • Product ModelDS-D4515CH-1FQF
  • Display
  • White balance brightness600 cd/㎡
  • Color temperature1700-15000K adjustable
  • Viewing angle160°(H)/160°(V)
  • Contrast ratio4000:1
  • Color uniformity± 0.003Cx,Cy
  • Brightness uniformity≥ 97%
  • Cabinet
  • Pixel configurationSMD Triad LED (with glue)
  • Pixel Pitch CategoryP1.5
  • Pixel pitch1.5625 mm
  • Lamp Bead Dimensions1.24 x 1.22 mm
  • Modules ComponentCabinet × 5, single cabinet (2 × 2)
  • Dimensions (W × H × D)600 (W) mm × 1687.5 (H) mm ×29.5 (D) mm (23.622'' × 66.435'' × 1.161'')
  • Resolution384*1080
  • Area1.0125 ㎡
  • Pixel density409600 dots/㎡
  • Lamp board housingWithout housing, glue potting
  • Cabinet materialDiecasting Aluminium
  • Maintenance methodFront maintenance
  • Processing Performance
  • Driving methodConstand Current Driving
  • Frame frequency60 Hz
  • Refresh rate3840 Hz
  • Grey level22 bit+
  • Power
  • Input Voltage100~240 VAC ± 10%
  • Max. Consumption≤410 W/㎡(600nit)
  • Average Consumption≤136 W/㎡
  • Working Environment
  • Opration Temperature-10 ℃~40 ℃
  • Operation Humidity10%~60%RH
  • Storage humidity-20 ℃ ~ 60 ℃
  • Storage temperature-20 ℃~60 ℃
  • General
  • Package Dimension (W × H × D)1860 (W) mm × 715 (H) mm × 186 (D) mm (1 '' × 1 '' × 1 '')
  • Accessory50 LED lamp beads, 10 IC chips, 1 network cable, 1 power cable, 1 HDMI cable, 1 multilingual user manual, 1 remote control, 1 magnetic adjustment rod, 1 cable clip, 1 Phillips screwdriver, 1 hex key wrench, 1 power cable, 2 spare LED modules, 1 spare HUB Board
  • Gross Weight39Kg
  • Net Weight33.4Kg
More Information
ean 317006805
Brand Hikvision
Education discount EDUCATION DISCOUNTS
Google EDLA No
