Hikvision LED Poster Display DS-D4515CH-1FQF 2nd Gen
Hikvision Poster LED - Retail P1.56 HOB, 600nit (DS-D4515CH-1FQ)
Hikvision Poster LED - Retail P1.25 HOB, 600nit (DS-D4512CH-1FQ)
£4,509.60£3,758.00
The Hikvision DS-D4512CH-1FQ is a high-resolution P1.2 indoor LED poster display featuring a slim 29.5mm-deep die-cast aluminium structure, 600 cd/m² brightness, 3840Hz refresh rate and 640,000 pixels/m². Its magnetic butterfly-frame design enables fast installation and horizontal splicing, while front-access LED modules simplify maintenance.
Please contact us for availability - Call on 01635 597044 or email [email protected]
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today

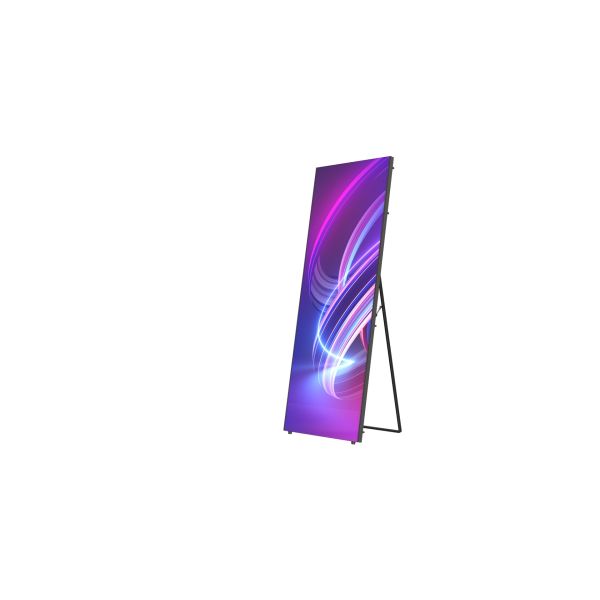

HIKVISION DS-D4512CH-1FQ P1.2 Indoor LED Poster Display
The Hikvision DS-D4512CH-1FQ is designed for high-quality close-range indoor digital signage, retail environments, corporate spaces, reception areas and other applications requiring a slim, high-resolution LED display.
Using 1.25mm pixel pitch SMD Triad LED technology, the display delivers a pixel density of 640,000 dots/m², 600 cd/m² brightness and a 4000:1 contrast ratio. Its 3840Hz refresh rate and 22-bit+ grayscale processing help produce smooth, detailed imagery with excellent dynamic performance.
The display uses a highly integrated magnetic butterfly-frame design, allowing quick horizontal splicing and flexible multi-unit configurations. The built-in sending card enables cascading of multiple units without requiring a separate external control device.
Maintenance is carried out from the front of the display, with LED modules supporting individual pixel repairs. The HOB-protected LED panel is designed for close-range viewing and provides improved resistance to moisture, impact and environmental stresses.
Multiple installation options are supported, including wall mounting, a built-in angled support bracket and mobile stand configurations. Content can be managed through local control, USB drive, PC software or web-based interfaces.
Key Features
P1.2 indoor LED poster display
1.25mm pixel pitch
SMD Triad LED with glue protection
600 cd/m² brightness
4000:1 contrast ratio
3840Hz refresh rate
22-bit+ grayscale
160° horizontal / 160° vertical viewing angle
640,000 pixels/m²
Slim 29.5mm cabinet depth
Die-cast aluminium construction
Magnetic butterfly-frame design
Front maintenance
Single-pixel repair capability
Built-in sending card
Horizontal multi-unit cascading
HOB LED panel protection
Multiple installation options
Local, USB, PC and web content management
Suitable for close-range viewing
Content & Control
The DS-D4512CH-1FQ supports multiple content-management methods, including:
Local control
USB drive input
PC-based operation
Web interface
Multi-unit cascading
Built-in sending card for simplified system configuration
Installation & Maintenance
The display supports several installation approaches:
Wall mounting
Built-in angled support bracket
Mobile stand
Horizontal multi-unit splicing
The front-access design allows LED modules and system components to be serviced without removing the display from its installation position.
