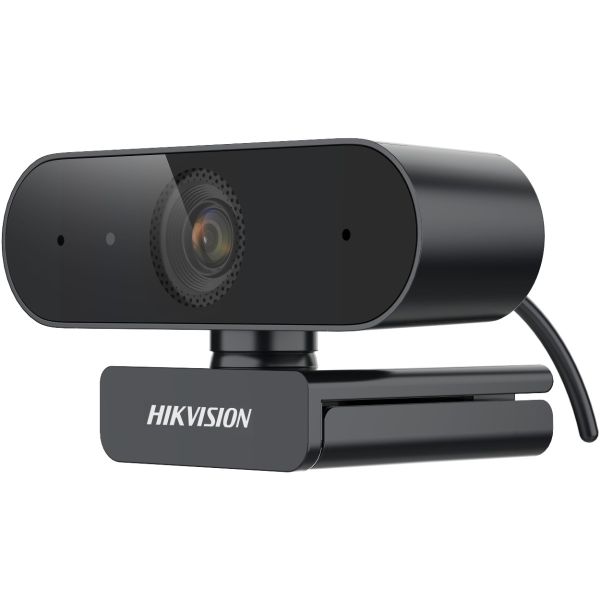

Hikvision Video Conference series 2MP, Mic (DS-U02)
£17.00
£14.17
The HIKVISION DS-U02 is a compact 2MP USB webcam delivering 1920 × 1080 Full HD video at up to 30 fps. It features a 3.6 mm fixed lens, 86° horizontal field of view, built-in microphone and plug-and-play USB 2.0 connectivity, making it suitable for video calls, remote working, online teaching and everyday conferencing.
IN STOCK
SKU
DS-U02
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-U02 is a compact and straightforward Full HD webcam from Hikvision's Value Series. Its 2MP CMOS sensor provides 1920 × 1080 resolution, while the 3.6 mm fixed-focus lens offers an 86° horizontal FOV, helping capture a wider view for individual users and small meeting spaces.
The integrated microphone provides convenient audio capture without requiring a separate microphone. The camera uses a USB Type-A interface with USB 2.0, offering plug-and-play operation without additional driver software.
Its compact plastic housing measures only 80.16 × 48.6 × 42.18 mm and weighs approximately 89 g, making it easy to position on a monitor or laptop setup.
Key features
- 2MP CMOS sensor
- Full HD 1920 × 1080
- Up to 30 fps
- 3.6 mm fixed-focus lens
- 86° horizontal FOV
- 55° vertical FOV
- 95° diagonal FOV
- 360° pan adjustment
- ±15° tilt adjustment
- Built-in microphone
- Automatic gain control
- 24/7 colour imaging
- USB Type-A
- USB 2.0 plug-and-play
- 1.5 m integrated cable
- Compact 89 g design
- Windows, Android, Linux, macOS and Chrome OS compatible
| Specification | Details |
|---|---|
| Model | DS-U02 |
| Product type | USB webcam |
| Series | Value Series |
| Image sensor | 2MP CMOS |
| Maximum resolution | 1920 × 1080 |
| Signal system | PAL / NTSC |
| Minimum illumination | 0.1 Lux @ F1.2, AGC ON |
| Shutter | PAL: 1/25–1/50,000 s; NTSC: 1/30–1/50,000 s |
| Imaging | 24/7 colour imaging |
| Lens | 3.6 mm fixed focal lens |
| Lens mount | M8 |
| Horizontal FOV | 86° |
| Vertical FOV | 55° |
| Diagonal FOV | 95° |
| Object distance | 0.5 m to ∞ |
| Pan | 360° |
| Tilt | -15° to +15° |
| Rotation | 0° |
| MJPEG | 1920 × 1080 @ 30/25 fps |
| MJPEG | 1280 × 960 @ 30/25 fps |
| MJPEG | 1280 × 720 @ 30/25 fps |
| MJPEG | 640 × 480 @ 30/25 fps |
| MJPEG | 640 × 360 @ 30/25 fps |
| YUV | 1920 × 1080 @ 5 fps |
| YUV | 1280 × 960 @ 5 fps |
| YUV | 1280 × 720 @ 5 fps |
| YUV | 640 × 480 @ 30 fps |
| YUV | 640 × 360 @ 30 fps |
| White balance | Auto |
| Audio | Built-in microphone |
| Audio sampling | 16 kHz |
| Video output | USB 2.0 |
| USB connector | Type-A |
| Cable length | 1.5 m |
| Indicator | White: working; off: standby |
| Power | 5 VDC ±5% via USB |
| Maximum consumption | 1.2 W |
| Material | Plastic |
| Operating temperature | -10°C to +45°C |
| Operating humidity | ≤90% RH, non-condensing |
| Dimensions | 80.16 × 48.6 × 42.18 mm |
| Net weight | Approx. 89 g |
| ean | 6941264076872 |
|---|---|
| Brand | Hikvision |
| Google EDLA | No |
