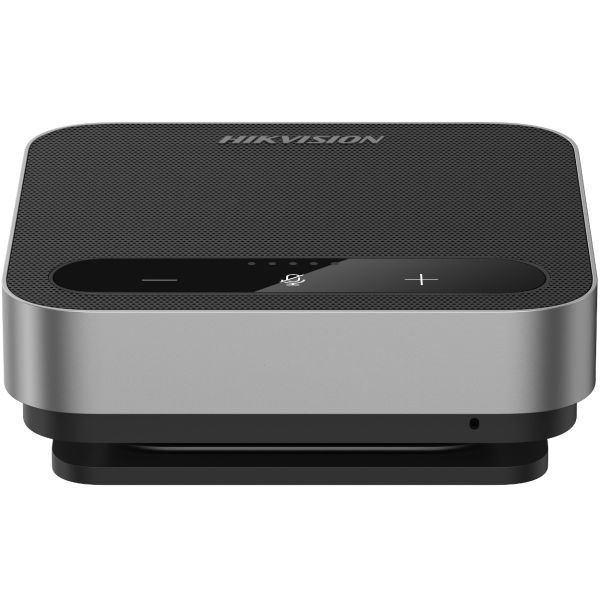

Hikvision Video Conference series 4-mic array, built-in Speaker, 4m (DS-UAC-S2V)
£110.40
£92.00
The HIKVISION DS-UAC-S2V is a compact wired conference speakerphone with a 4-microphone 360° array, up to 3 m voice pickup and a built-in 3 W HD speaker. AEC, automatic noise suppression, AGC, echo suppression and anti-reverberation provide clear two-way audio for meeting rooms, huddle spaces and online conferencing.
IN STOCK
SKU
DS-UAC-S2V
Planning a larger AV project?
Discover our dedicated Pro division for expert design, installation, and commercial solutions.
Simply AVS are able to offer significant discounts for Education customers, and for larger orders. Purchase orders welcome. Finance options available. Contact us today
The DS-UAC-S2V is designed as a simple plug-and-play audio solution for video conferencing. Its four MEMS microphones provide 360° omnidirectional voice pickup within a radius of up to 3 metres, making it suitable for small meeting rooms and collaborative workspaces.
The integrated 3 W speaker provides audio coverage up to 5 metres, while Hikvision's audio processing combines acoustic echo cancellation (AEC), automatic noise suppression (ANS) and automatic gain control (AGC). Additional processing includes steady and transient noise reduction, echo and squeal suppression, anti-reverberation and enhanced vocals.
Connection is via the supplied USB 3.0 Type-A cable, providing straightforward plug-and-play operation with Windows, Android, Linux and macOS systems.
Key features
- 4 × MEMS microphone array
- 360° omnidirectional pickup
- Up to 3 m microphone pickup radius
- Integrated 3 W HD speaker
- Speaker range up to 5 m
- AEC acoustic echo cancellation
- ANS automatic noise suppression
- AGC automatic gain control
- Smart steady/transient noise reduction
- Echo and squeal suppression
- Anti-reverberation
- Enhanced vocal processing
- USB 3.0 plug-and-play
- 0.9 m USB cable
- Five LED status indicators
- Compatible with leading online conferencing platforms
- Compact 120 × 120 mm footprint
| Specification | Details |
|---|---|
| Model | DS-UAC-S2V |
| Product type | Conference speakerphone |
| Microphone type | MEMS |
| Microphone quantity | 4 |
| Pickup pattern | 360° omnidirectional |
| Pickup distance | Up to 3 m radius |
| Frequency response | 100 Hz–8 kHz |
| Sensitivity | -38 dBV/Pa |
| SNR | 66 dB |
| Sampling rate | 16 kHz |
| Dynamic range | 94 dB |
| Acoustic overload point | 124 dB SPL |
| Microphone THD | 0.15% @ 94 dB SPL, 1 kHz |
| 3A processing | AEC / ANS / AGC |
| Speaker power | 3 W |
| Maximum output | 82 dB SPL @ 1 m |
| Speaker range | Up to 5 m radius |
| Speaker bandwidth | 150 Hz–16 kHz (-10 dB) |
| Speaker THD | <3% @ 1 kHz |
| Audio processing | Noise reduction, echo suppression, anti-reverberation, squeal suppression, enhanced vocals |
| LED indicators | 5 × LED |
| Communication | USB 3.0 |
| USB cable length | 0.9 m |
| USB interface | Type-A |
| Windows | XP / 7 / 8 / 10 / 11 |
| Android | 8.1 and above |
| Linux | 4.14 and above |
| macOS | 10.12 and above |
| Power | 5 VDC ±5% |
| Maximum consumption | 4.5 W |
| Operating temperature | 0°C to 45°C |
| Operating humidity | ≤90% RH, non-condensing |
| Dimensions | 120 × 120 × 41.4 mm |
| Package dimensions | 152 × 146 × 52 mm |
| Net weight | 275 g |
| Gross weight | 385 g |
| Brand | Hikvision |
|---|---|
| Google EDLA | No |
