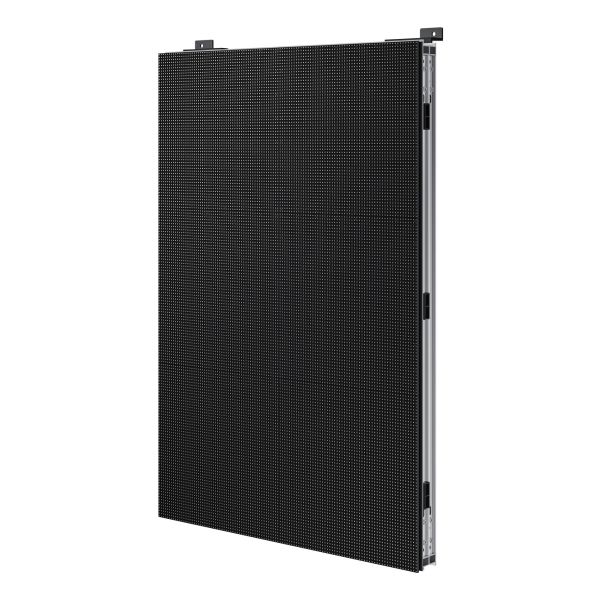

Samsung XHB100-SA Outdoor LED Display – 100″ Panel, 10.78 mm, 8000 cd/m², IP66 Weather-Resistant

The Samsung XHB100-SA (model LH100XHBTAS/EN) is a professional-grade outdoor LED signage display unit designed to deliver exceptional visual performance in demanding external environments. With a tall 8 000 cd/m² brightness rating, this panel ensures content remains vivid and easily readable even under direct sunlight, making it ideal for high-impact outdoor advertising, retail façades, stadiums, transport environments and large-format signage applications.

Built on Samsung’s XHB-S Series technology, the display supports crisp visuals with a 10.78 mm pixel pitch and advanced colour processing that produces billions of colours with smooth gradients and deep contrast. The LED panel’s 7680 Hz refresh rate and 60 Hz video playback ensure stable, flicker-free motion for dynamic digital signage.

Engineered for reliability, the XHB100-SA features a rugged IP66 dust and water-resistant rating, fan-less heat dissipation technology and an ultra-slim cabinet design that makes installation and maintenance easier while standing up to harsh weather conditions around the clock. Its robust build and energy-efficient design help reduce operating costs while maintaining outstanding performance.

Key Features & Benefits

• Outdoor-Grade LED Signage — Designed for full sun exposure and all weather conditions.

• Ultra-High Brightness (8000 cd/m²) — Visible in direct sunlight and high-ambient light environments.

• IP66 Weatherproof Design — Comprehensive dust and water protection for outdoor reliability.

• 10.78 mm Pixel Pitch — Balanced panel density for clear, vibrant content at distance.

• Wide Viewing Angles — Consistent visuals across large viewing areas.

• High Refresh & Video Rates — 7680 Hz refresh with 60 Hz video playback, ideal for motion content.

• Fan-less / Slim Cabinet — Lightweight and efficient setup with reliable heat management.

• Energy Efficient — Lower operating power without compromising brightness and performance.

Specifications (At a Glance)

• Model: LH100XHBTAS/EN (XHB100-SA)

• Display Type: Outdoor LED signage panel

• Pixel Pitch: 10.78 mm (approx)

• Brightness: 8000 cd/m²

• Resolution (Cabinet): 64×96 pixels

• Refresh Rate: 7680 Hz

• Video Rate: 60 Hz

• Viewing Angles: H: ~160°, V: ~107°

• Contrast Ratio: ~8000:1

• Colour Temp: 6500 K

• LED Type: SMD 3-in-1 (XD Au diode)

• Cabinet Materials: Aluminium / industrial grade

• IP Rating: IP66 (front/back)

• Power: AC 100-240 V, 50/60 Hz

• Operating Temp: -40 °C to +55 °C

• Dimensions (WxDxH): ~689.9 × 92.9 × 1035.4 mm per cabinet

• Weight: ~23.2 kg per cabinet
