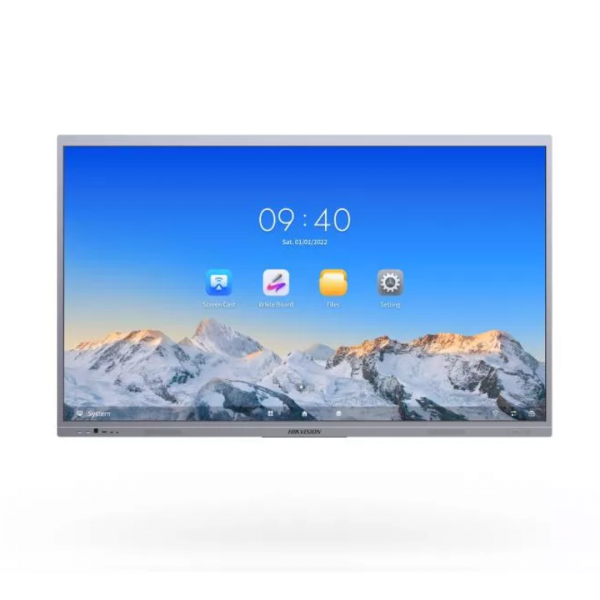

Hikvision DS-D5C98RB/A 98' Ultra Series 4K UHD Interactive Touch Screen Display

Product Model DS-D5C98RB/A

Display

Screen Size 98 inch

Backlight DLED

Pixel Pitch 0.5622 (W) × 0.5622 (H) mm

Resolution 3840 × 2160 @60 Hz

Brightness 600 cd/m² (Typ.)

Color Depth 10 bit

Display Color 1.07 G

Response Time 5 ms

Panel Type VA

Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)

Color Gamut 72% NTSC (CIE1931) (Typ.)

Refresh Rate 60 Hz

Viewing Angle 178° (H)/178° (V)

Aspect Ratio 16:9

Surface Hardness 9H (Pencil) 7 (Mohs)

Surface Glass Anti-Glare Glass

Surface Haze 25% Haze

Glass Bonding Method Zero Lamination

Display Area 2158.848 mm × 1214.352 mm

Working Duration 7 × 16 H

Transmittance 88% ± 3

Lifespan 50,000 hours

Touch

Type Infrared Touch Screen

Touch Point Up to 50-point multi-touch

Touch Response Time ≤ 2 ms

Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)

Touch Precision ± 0.5 mm (≥ 90% touching area)

Touch Resolution 32767 × 32767

Built-in System

Operation System Android 13.0

Memory 8 GB

Built-in Storage 128 GB

Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）

GPU Mali-G610 MC4

HDCP Version 2.3

Internal Function

Loudspeaker Built-in 2 × 20 W + 25 W loudspeaker;

Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1

NFC Support screen mirroring by Android phones

Light Sensor Yes

Interface

Video & Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1

Video & audio output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1

Control interface TOUCH-USB 3.0 × 3, RS232 × 1

Network Interface LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

Data Transmission Interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power

Power Supply 100 to 240 VAC, 50/60 Hz

Standby Consumption ≤ 0.5 W

Average Consumption < 325 W

General

VESA 1000 mm × 400 mm (4 × M8-20 mm)

Product dimensions 2219.8 mm × 1336.4 mm × 105.7 mm

Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable , bluetooth remote control.

Package Dimensions (W × H × D) 2520 mm × 330 mm × 1700 mm

Net Weight 94 kg

Gross Weight 137 kg

Working Environment

Working Temperature 0 °C to 40 °C (32 °F to 104 °F)

Working Humidity 10%~90% RH
